Best Aluminum Alloy Gravity Die Casting Machine with Low Price Jd-550

Product Description

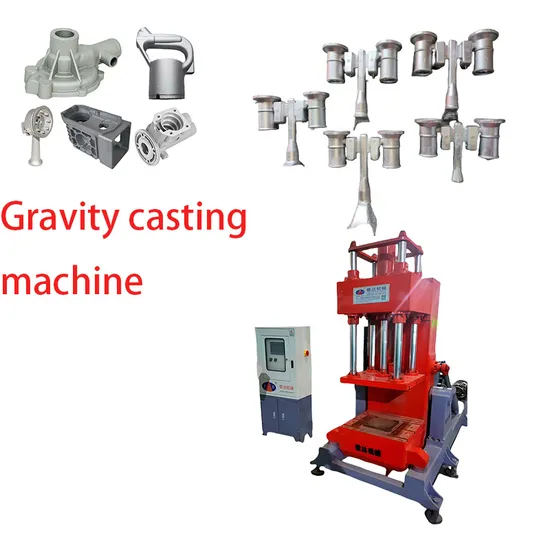

Gravity Die Casting Machine for Zinc Alloy castings (JD-550)
Product Description
The machine is applicable to die casting of non-ferrous metals with low melting point such as Zn (Zinc) and Pb (Plumbum). It's a machine which is used in casting not only aluminum but also zinc and some other metals. For brass and copper casting, please refer to our products JD-AB500 and JD-AB400. It is widely used in various industries including automobile and motorcycle parts, meters and instruments, daily-use hardware, and household appliances.
The machine is controlled by industrial level microcomputer. The die casting process parameters can be set up through the person-machine interface and import proportional oveflow valve ensure easy operation of parameter and program setup. The injection system uses large-caliber logic, ensuring die-casting parts have high quality. The machine has remote machine control and trouble locating functions.
The machine is equipped with import electronic and hydraulic parts, ensuring a reliable and safe whole-machine performance, it is advanced type of die casting machine within our country at present.
Technical parameters:
1. Controlled by a PLC control unit. (Mitsubishi).
2. Running: Hydraulic Transmission&water cooling system(A hydraulic master cylinder system can control three casting machines)...
3. Casting Function: Tilting moving casting, fixed tilting casting, fixed horizontal casting
4. Casting speed & angle are adjustable, size angle: 0-85°
5. The time of cooling mold is adjustable
6. The size of die holder of fixed mold: 750mm*350mm*70mm
7. Max. Weight of mould: 250kgs
8. Having safety footboard(the set to protect the operator)
9. Power: 7.5KW.
10. Max engaging distance: 400mm
11. The space between the fixing board of the mold: 620mm
12. The pressure of engaging mold: 4200kg
13. Fuel tank capacity: 450L
14. Working oil pressure: 50-60kg/cm²
15. Solid time are adjustable.
16. The time of casting can be shown.
17. The level of pouring package can be controlled
18. If the die temperature exceeds the limits, the mold can not be engaged
19. The net weight of machine: 3500kg
20. Machine dimensions: 2600mm* 1500mm* 1700mm
Traits:
1. Multi-stage pressure and speed control to mode-locked opening, it is equipped with low pressure locking protection function.
2. Central electric lubrication system.
3. Hydraulic driver gear die regulating device.
4. Germany and Japan famous brands hydraulic elements(optional).
5. Injections of two sections of pressure and speed control, high-speed injection of piston type accumulator.
6. Rapid hydraulic ejecting device and core puller.
Our products JD-650-75A and JD-750-75A are also used in casting not only aluminum but also zinc and some other metals.
On technology, we constantly innovate, and strive to high-tech and high quality;
On the process, we strive for perfection, breakthrough tradition and strive for excellence;
On management, we emphasize science, pursue internationalization management concept;
On the service, we adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.

---
