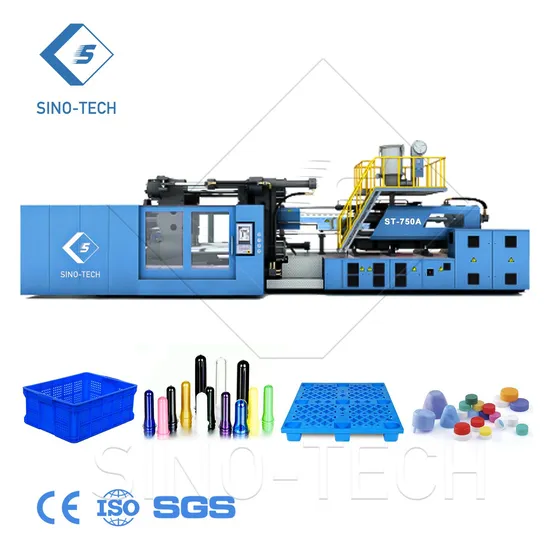

16 Cavity Pet Preform Product Machine with Pneumatice Valve Gate System

Product Description

16 Cavity Pet Preform product machine with Pneumatice Valve Gate SystemOur automatic plastic perform injection molding machine adopts a thermal flow system and high-pressure injection molding to get high precision of bottle mouth, bottleneck and screw. It can inject all kinds of plastic parts such as bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, etc.
Product Description
Machine Features:
1) Precision hydraulic synchronous template adjusting system
2) Optimal design of high-strength precision clamping structure, Clamping unit rigidity and accuracy
3) Large colorful screen high-precision computer system, precision control, easily operation, multi operation language available. High-precision displacement sensor system, temperature control accuracy, big capacity data storage and date protection ability
4) World famous brand electrical system
5) Balanced type of double injection cylinder, eliminate oblique torque, diminishes deformation of screw and barrel, extend life of screw and barrel, optimizes plasticizing effect. Machine injection under multi-pressure and at various speed, with big capacity hydraulic motor.
6) Large torque oil motor
7) Highly abrasion resistant alloy sliding block
8) The integrate type oil detachable oil tank, magnetic filter and bypass strainer. Reasonable and highly efficient lubrication system. Modularized energy conservation high response oil system
9) Highly precise transducer, multi-stage control of opening stroke, speed and position. Flexible tie bars nut eliminate fatigue fracture, assure tie bars long working life.
10) Security door fitted with hydraulic, mechanical and electrical interlocking triple safety device, fully protect machine operator.
11) Energy saving system, no extra energy consumption due to output volume changes according to load alteration. During stage of holding pressure, servo motor lower down energy consumption, 0 energy consumption during machine cooling stage, save 20%-80% energy consumption compare with standard machine.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		450SElll
		4500-3508
Screw diameter	mm	70	80	94
Theoretical shot volume	cc	1539	2011	2776
Shot weight (PS)	g	1401	1830	2526
Shot weight (PS)	oz	49.5	64.7	89.3
Length/Diameter ratio	L/D	24.2	21.2	18
Injection pressure	MPa	228	174	126
Injection rate	cm³/sec	352	460	635
Injection stroke	mm	400
Max. Screw speed	rpm	170
Plasticizing capacity (PS)	g/s	72.7	94.3	131.3
Injection unit force	Ton	12
Carriage stroke	mm	480
Clamping force	Ton	450
Max. daylight	mm	1600
Clamping stroke	mm	780
Distance btwn. Tie bars	mm	820*820
Min mould dimension	mm	570*560
Mould thickness range	mm	300-820
Ejector force	Ton	16.6
Ejector stroke	mm	240
No. of ejector pins	unit	17
Max. motor power	kW	50.7
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	275
No. of heater zones	unit	5+1
Heater input power	kW	34.94
Ultimate capacity	kw	86.64
Current	A	118.5
Net weight	Ton	16.72
Oil filling capacity	L	700

Seller Recommendation

Detailed Photos



Application
Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
