Sinbosen Ds-14K Professional Audio Class Td 2-Channel Power Amplifier for 18 Inch Subwoofer

Product Description

Product Parameters

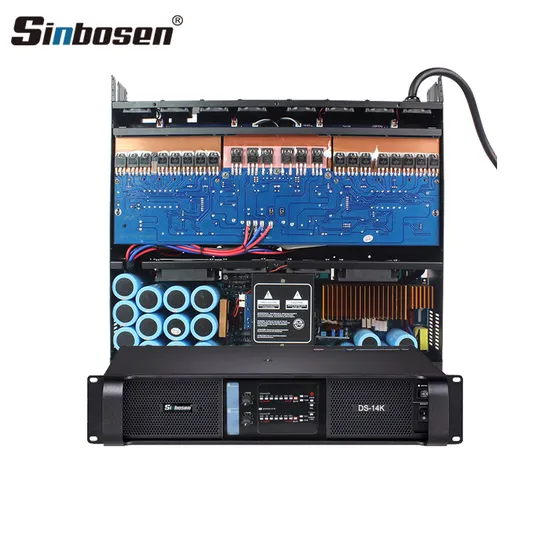

Sinbosen DS-14K 2400 Watt Sound Professional High Power Amplifier
ITEM	DS-14K
Output Power	20-20kHz, 1W with 1 KHz
8ΩStereo Power(RMS)	2400Wx2
4ΩStereo Power(RMS)	4400Wx2
8ΩBridged Power(RMS)	8800W
4ΩBridged Power(RMS)	14000W
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD Class
TourClass Protection	short circuit, DC voltage, turn-on/off transient, current, inrush
Operating voltage	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 Kohms
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Weight(kg)	15.5kg

Feature

2 Channel Class TD Switching power amplifier 2 x 2400 Watts Watts into 8 Ohms, 2 x 4400 into 4 Ohms Create SUPER BASS sound,suit for 2units 18"/21" subwoofer Separately controllable on Gain Scalable Voltage Peak Limiter (VPL) Bridge-mode operation for Touring Applications Comprehensive protection scheme Use 12Pcs high quality capacitors 3300uf 200V +4pcs 2200uf Capacitors Use Original ONSEMI transistor Original Neutrik XLR*/Speakon connectors High efficient cooling. Add more 8pcs fans on rear side, totally 12pcs fans built-in Temperature protection;Over current protection;Short circuit protection built-in

More Detail
FAQ 1.What's your MOQ (Minimum order quantity)?
A:There is no MOQ limited, you can choose to order 1pc or 1000000pcs, the more the better!

2.Except product value and shipping cost, do I need to pay any other fees in China?
A:No other fees needed in China!

3.How can I make the payment, what's your payment terms?
A:You can pay by TT, Western Union, or Paypal; 30% deposit before production, 70% balance before shipment!

4.How long will it takes for production after payment? ( By express, door to door delivery, such as DHL/TNT/FedEx/UPS...)
A:If your order qty less than 5000pcs, it will takes about 10 working days; If more than 5000pcs, please confirm with me directly!

5.How long is your guarantee period of products?
A:1 year, if any problems during this period, we will sent you free replacements to repair, anyway we will find the best solution for you!

6.Can you use our company logo and package?
A:Yes, we are manufacturer, we accept OEM request!

---
