Storage Tank Electrolyte Alkaline Electrolytic Cell Electrolysis Tank Electrolyser of Li-ion Batteries

Product Description

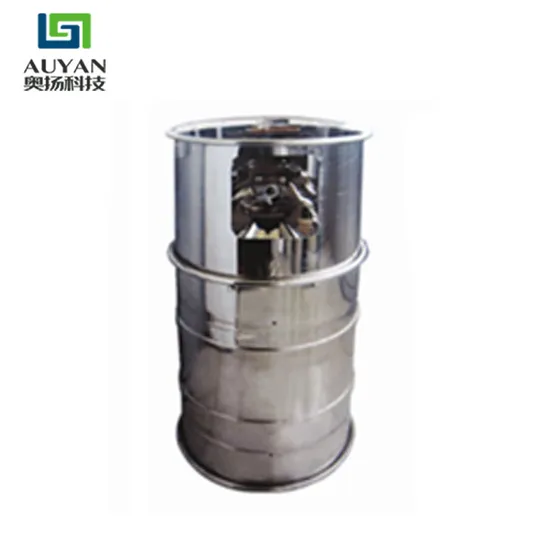

Product Description Auyan Electrolyte Tank Product Features:
1. The general electrolyte tank type of the industry can also be professionally designed and produced according to the special requirements of customers;
2. The structure of theelectrolyte tankl is simple and reasonable, the airtightness is good, the durability is strong, the use is safe, and the filling and cleaning are convenient;
3. Suitable for storage and transportation of lithium batteries, electrolytes, and high-purity chemicals;
4. The whole barrel is made of high-quality 304 stainless steel plate, which is corrosion-resistant;
5. Using argon arc welding technology and plasma welding technology, single-sided welding, and double-sided forming, the working pressure can reach 0.6MPa (otherwise can be customized according to customer needs);
6. It is sealed by standard flange connection and PTFE gasket;
7. Mechanical mirror polishing Ra≤0.4 (or 8K mirror surface) on the outer surface of the tank, electropolishing Ra≤0.4 on the inner surface, bright inside and outside, not easy to rust, and avoid polluting the purity of the electrolyte;
Product Parameters

1000L technical characteristics table
Item	Parameter
Design pressure	0.6MPa
Set tempreture	60°C
Maximum working pressure	0.0098MPa
Maximum operating temperature	normal temperature°C
Stock density	1.09×103Kg/m³
Full volume	1.01m³
Corrosion allowance	0mm
Filling factor	90%
Main material	S30408
Filled water weight	1220Kg
Equipment net weight	210Kg(without frame)
Nozzle and support	by drawing
Paint, Packaging and Shipping	JB/T4711-2003
Note	1. The container is clean and dry, and the inside and outside are clean and free of oily impurities; 2. The take-off pressure of the safety valve is 0.4±0.02MPa, and the gasket is EPDM;

Packaging & Shipping Packing with wooden box and shipping method can be negotiated.
Company Profile AUYAN Innovative enterprise specializing in manufacturing cryogenic equipment and providing technical service. Such as industrial welded insulated cylinders, hydrogen cylinders, storage tanks, vehicle intelligent LNG cylinders, CNG cylinders, LNG/CNG/CHG supplying systems, filling stations, LNG/CNG/CHG gas stations, hydrogen productions equipment, etc.

---
