178f 4 Stroke Agricultural Mini Diesel Garden Power Tiller

Product Description

Product Description

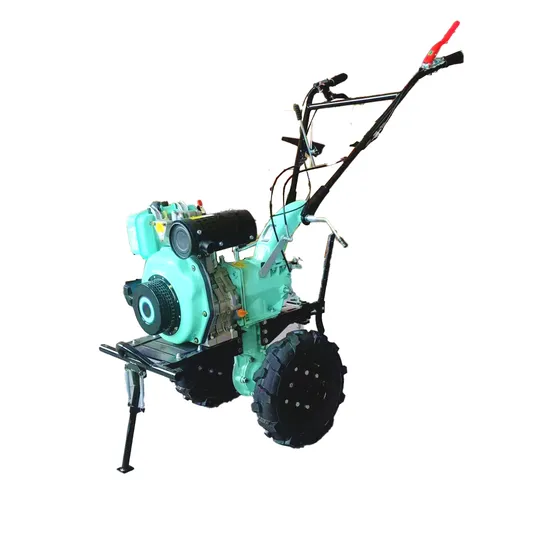

178F 4 Stroke Agricultural Mini Diesel Garden Power Tiller
A cultivator is a piece of agricultural equipment used for secondary tillage. One sense of the name refers to frames with teeth (also called shanks) that pierce the soil as they are dragged through it linearly. It also refers to machines that use the rotary motion of disks or teeth to accomplish a similar result. The rotary tiller is a principal example.
Cultivators stir and pulverize the soil, either before planting (to aerate the soil and prepare a smooth, loose seedbed) or after the crop has begun growing (to kill weeds-controlled disturbance of the topsoil close to the crop plants kills the surrounding weeds by uprooting them, burying their leaves to disrupt their photosynthesis or a combination of both). Unlike a harrow, which disturbs the entire surface of the soil, cultivators are designed to disturb the soil in careful patterns, sparing the crop plants but disrupting the weeds.
Cultivators of the toothed type are often similar in form to chisel plows, but their goals are different. Cultivators' teeth work near the surface, usually for weed control, whereas chisel plow shanks work deep beneath the surface, breaking up the hardpan. Consequently, cultivating also takes much less power per shank than chisel plowing.
Small toothed cultivators pushed or pulled by a single person are used as garden tools for small-scale gardening, such as for the household's own use or for small market gardens. Similarly sized rotary tillers combine the functions of a harrow and cultivator into one multipurpose machine.
Cultivators are usually either self-propelled or drawn as an attachment behind either a two-wheel tractor or a four-wheel tractor. Two-wheel tractors are usually rigidly fixed and powered via couplings to the tractors' transmission. For four-wheel tractors, they are usually attached by means of a three-point hitch and driven by a power take-off (PTO). Drawbar hookup is also still commonly used worldwide. Draft-animal power is sometimes still used today, being somewhat common in developing nations although rare in more industrialized economies.
EAGLE SINO micro-tillers are powerful, stable in quality, time-saving, affordable and ultra-low cost, making them the best choice for agricultural consumers.

Product name			178 Diesel powered Power Tiller
model name			1WG4.5-110FC-ZC
Specification Model			Handheld
Matching Engine	Model Name		178F Diesel engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4.0 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall dimension(mm)			1740x1100x800
Weights			97kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:145 r/min Slow gear S:83 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	32
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1100 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤30 kg/hm ²

Detailed Photos

Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.

---
