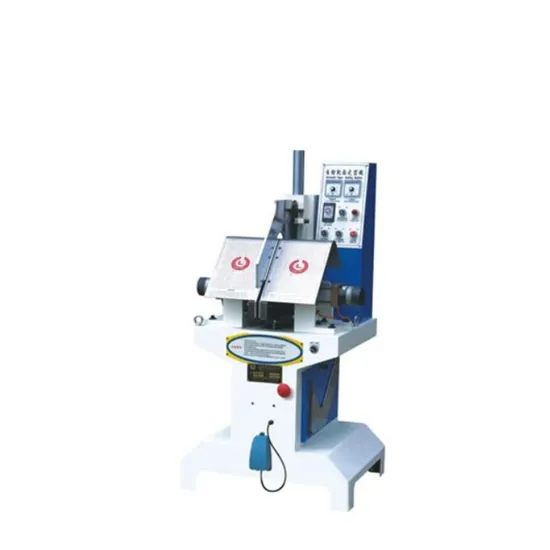

Double Bend Shoe Upper Vamp Crimping Moulding Footwear Machine
Negotiable
1 Piece
(MOQ)
Basic Info.
Certification
CE
Power Supply
Pneumatic
Applicable Material
Plastic, Genuine Leather
Function
Shoemaking Line
Type
Shoes
Automatic Grade
Automatic
Classification
Shaping Machine
Transport Package
Wooden Case
Specification
XCXYC-Q
Trademark
Greater
Origin
China
HS Code
84532000
Production Capacity
20PCS/Month
Product Description
The machine adopts complete air pressure system design. Simple operation and convenient adjustment. One-step forming saves material cost. Double curved blade board can be made according to customer requirements. The machine has two functions, which can be double bending and single bending when replacing the blade board(the machine is provided with three blades).
Dimension
L800×W850×H1400 mm
Power
2 kw
Pneumatic pressure
6 kgf/cm2
N.W
275 kg
Capability
1500 pair/8hr.
1) This is the first time I use this kind of machine, is it easy operate? There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. 2) If machine have any problem after I ordered it, how could I do? Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. 3) MOQ ? Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
