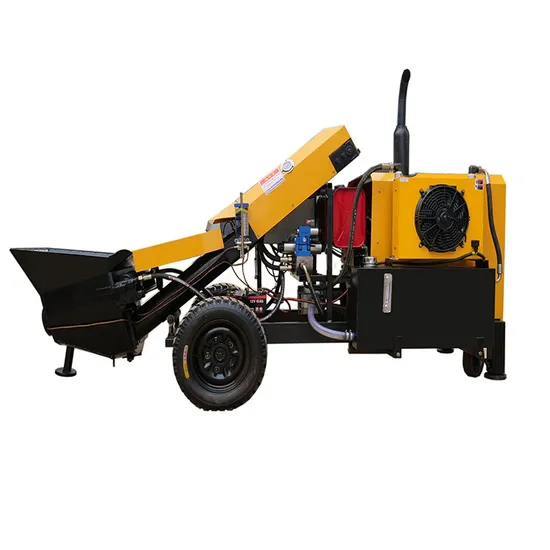

7m3 Per Hour Small Concrete Pump Machine

Product Description

7m3 per hour Small concrete pump machine Diesel Small Concrete pump machine, 7m3/h capacity, pumping height 15mts. Equipped 490D diesel engine(29kw), more stronger power than old small diesel pump, improved the continues pumping performance.New design, good Choice!
Product Description

No.	Item	Unit	UR-CP7D
1	Aggregate Size	mm	≤ 30
2	Vertical pumping distance	m	15
3	Horizontal pumping distance	m	30
4	Capacity	m³/h	7
5	Oil pump	mm	40
6	Diesel engine	kw	490D 4 Cylinder 28kw
7	Diesel tank	litre	30
8	Oil consumption	L/H	4
9	Battery	pcs	12V 45Ah 2pcs
10	Material cylinder diameter		Φ120
11	Material cylinder stroke	mm	600
12	Hopper height	mm	500
13	Dimension	mm	2800*1030*1600
14	Total weight	kg	1000

Product Detailes
Packaging & Shipping
After Sales Service
1. We have done testing machine before shipping.
2. Support video operating indication, english manual, online technical support.
3. We promise 12 months warranty. Wearing parts not includes.
4. Necessary installation service if required. But you should pay the person flight cost and salary $100/day.
Company Profile
FAQ
1. How to choose the pumps?
R: According your demands working capacity, have small model 7m3/h, large models 15m3/h,25m3/h,35-40m3/h. Confirm your capacity!
R: according your pumping height and length demands.
R: according power - 2types, Diesel & Motor power, tell us what you prefer?
2. What the minimum order qty? the delivery time?
R: Qty 1PC at least.
R: 1pc pump machine within 7-10days, 2-5pcs pumps within 10-15days.
3. Why you choose us?
R: we use all Brand equipments, such as Huadong Diesel engine, Japan pump,brand motor and electrics, cylinder, heavy steel. Ensure
the pump with longer use life.
R: so do not compare only price, choose high quality choose us.
4. How long the Warranty? how you do the after-sales service?
R: we promise 12 months warranty.
R: support video operating indication, English manual,online technical support.

---
