66mm Od Pleated Filter Cartridge for Oil&Gas Water Injection

Product Description

Company Profile
Hangzhou Darlly Filtration Equipment Co.,ltd is a high-tech company located in Fuyang, Hangzhou,Zhejiang Province, China. Darlly specialiazes in designing and manufacturing various filter cartridges used for diiferent applications.
Our filter cartridges are widely used in Bio-pharmaceuticals, Microelectronics,Food and beverage, Power generation,Petrochemical, Metal processing,Drinking water treatment,Swimming pools and spa water treatment, Mechanical manufacturing,Mining,etc markets.We have the market share all over the world, most of the products sell to North America, Europe,Southeast Asia,Middle east,Taiwan and all the area in China.With 14,727 square meters of factory area and 32,000 square meters of building area, state-of-art facility, manufaturing and testing equipment, professional R&D team. Darlly is well accepted in the global market.We have hundreds of "off-the-shelf" products for you to choose. Whatever you cannot find in our catalog,we can make it for you. Define your needs and let us put your vast resources to work for you, give us the opportunity to go beyond the expected, and you will see what a difference Darlly can make.
When our customers succeed, Darlly succeeds. To make our customers stronger and to grow with customers is our mission."Endevored to produce the best cartridges" is our continously pursued goal. Our commitment is to continously enhance our ability to innovate, and supply quality products, resonable price and excellent service to meet the diverse and demanding requirements from our customers.
Certificate
Product Details

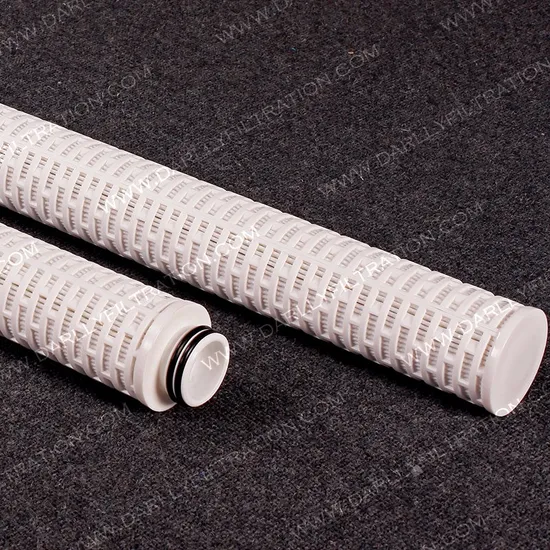

MFF Series Pleated Filter Cartridge
General Description
MFF Series Pleated Filter Cartridge is manufactured to exact standards and is used in the most demanding industrial environment. This filter is manufactured in a wide range of length options and micron ratings. Its media has a fixed pore construction of high quality fibers while providing combination of surface and depth filtration. Due to use of premium quality filter fabrics; this pleated filter cartridge has superior flow characteristics with a very low pressure drop compared to depth media of similar micron ratings. This filters large surface area, increased dirt holding capacity, and innovative design provide a long service life, allowing you to reduce the number of cartridge used. Your advantage is a smaller filter vessel, less footprint and lower capital investment.

Applications
--Chemical
--Oil& Gas Industry
--Metal treatment
--Process water
--Electronics
--Coatings, paints
--Petroleum

Features
--Large filter area and depth filtration provides a long lifetime of pleated filter cartridge
--Low cost because of large filter area and reduces labor costs to change

Specifications
Dimensions

Outside diameter	64mm, 66mm, 69mm
Inside diameter	28mm
Length	10″, 20″, 30″, 40″

Material of Constructions

Filter media	PP, PET, Glass fiber
End cap	PP, ABS
Center core	PP, ABS
Netting	PE
Seal material	Silicone, EPDM, NBR, Viton
End cap types	DOE, 222/Flat End

Performance

Removal rating	1μm, 2μm, 5μm, 10μm, 20μm, 50μm
Operating pressure and temperature	The pleated cartridge construction will withstand differential pressure up to 60 PSI(4 bar) at ambient temperature
The optimum change out differential pressure	35 PSI(2.5 bar) up to 52ºC
Service condition	500KPa(5 bar) by 20ºC 300KPa(3 bar) by 65ºC

Part numbers/Ordering Information
MFF Series Filter Cartridge P/N: DLMFF-*-=-&-+-☆ (e.g., DLMFF-5-10-PP-S-F)
