2023 Top Sign-9015/1318/1325 Professional Heavy Stone CNC Router/3D Stone Carving Machine

Product Description

9015 1318 Model Professional Heavy Stone CNC Router Machine Engraving
Product Description:
1. Heavy duty type and profiled steel welded lathe bed, stabilizing treated under high temperature for strong bearing capacity.
2. Spindle 3.2 / 4.5 / 5.5kw water cooling model, Low noise high rotated speed (24000rpm).
3. X,Y,Z axis all adopts dust proofing and waterproofing design, and make sure the rail keep working well when the water splashing.
4. Taiwan Hiwin/TBI brand square guide rails and pinion and rack.
5. Continue working after the break point / power failure, lower the rejection rate.
6. Y adopt durable driving by synchronizing wheel consist of belt and gear shaft.
7. Best mechanical and electrical design with well selected brand parts minimize breakdown rate.

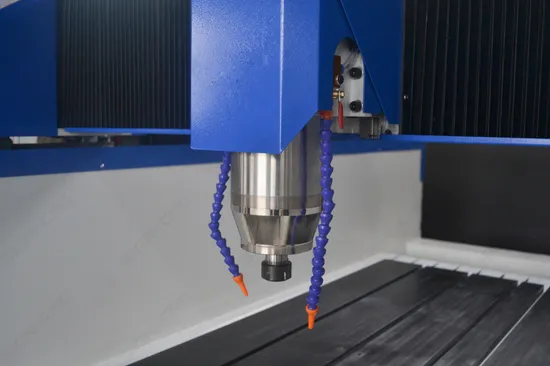

8. Table with water channel and water cooling system for cooling the tool during working, and easy to flow the water and keep the clean ground and clean table.
Application:
Tombstone carving, Building Decoration, Wood furniture Industry, Furniture decoration, large scale board engraving, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Stone, granite, marble, jade, metal, glass, Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:

Model	SIGN-9015	SIGN-1318	SIGN-1325
X, Y Working size	900*1500mm	1300*1800mm	1300*2500mm
Z feed Height	300mm
Table Surface	T-slot working table
X, Y Structure	Rack and Pinion, Taiwan Linear Square Guide Rail
Z Structure	Taiwan Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	25000mm/min
Spindle Power	5.5kw water cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Stepper motor and driver
Working Voltage:	AC 380V /50/60Hz
Command Language	G code
Control System	NCstudio / Mach3 / DSP
Dustproof	X Y Z axis
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm<>
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Weight of the machine	1800kg
Option	Servo motor Rotary
Warranty	Two year

Contain:

NO.	Mane	Features and use	Quantity
1	Frame of machine bed	T-type heavy duty frame	1 set
2	Gantry	Whole casting	1 set
3	Spindle	Water cooling type	1 pcs
4	Inverter	The inverter is to adjust the motor speed to achieve environmental protection and energy saving.	1 pcs
5	Motor	Stepper	4 sets
6	Driver	Leadshine	4 sets
7	NCstudio card	Control system	1 set
8	Control cabinet	Computer cabinet and electrical component installation	1 pcs
9	Guide rails	Hiwin square guide rails	1 set
10	Rack gear	Helical rack and gear	1 set
11	T-slot working table	Aluminum profiles	1 set
12	Oil lubrication system	Lubrication the rails and rack gear	1 pcs
13	Water pump	One cooling the spindle motor and other cooling the tool	2 pcs
14	Collets	Hold the bit on the spindle	4 pcs
15	Materials holder	Fixing material when engraving	8 set
16	CD for Artcam software	Drawing engraving files	1 set
17	Cutter	Used for engraving and cutting	2 box
18	Connecting cables	Data Cable, Power Cable, etc.	1 set
19	Wrench	Used for change the cutter or routine maintenance	2 pcs
20	L-type screwdriver	Used for L-type screwdriver	1 set
21	Tool box	Loading tools and some gadgets	1 pcs

Option parts:
Rotary: Working for cylinder stone materials engraving, diameter different like small 100mm up to big 300 or 400mm dependent on your demand. Servo motor and driver: Famous Japanese Yaskawa or Panasonic servo motor and driver
Samples:
Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.

FAQ
Q: Is this machine can load heavy stone? A: Yes, this machine is a professional stone cnc router, bed is T type havy duty, can load stone 2 ton.
Q: What's type stone it can engraving? A: It almost can engraving all the stone, like granite, marble, jade and so on.

---
