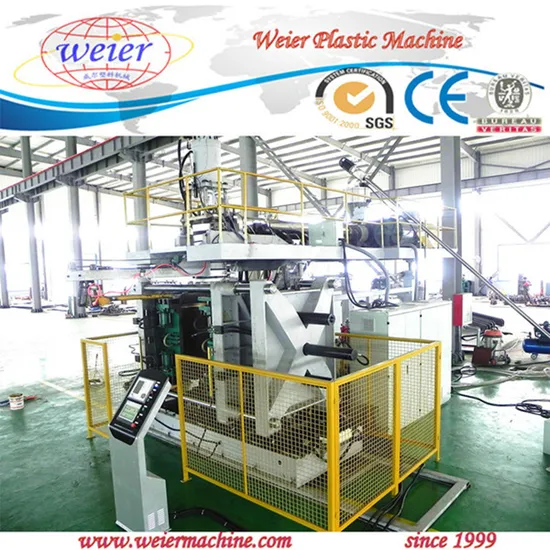

500L 2000L HDPE Water Tank Barrel Blow Molding Machine 1000L IBC Tank Making Machinery

Product Description

500L HDPE PE water tank barrel blow molding machine
1000L IBC tank making machinery
1.Style Number: SLZK-500L /500L-2 /500L-3 / blow molding machine.
2.Product range: 500-2000 L 3.Material process: HDPE/HMWHDPE
4.Output: 3 min/pc 500L water storage tank 5.Payment Terms: FOB QINGDAO ,CHINA

SLZK-500L /500L-2 /500L-3 / blow molding machine parameters

System	Item	2 layer	3 layer
Extruder	90/90Screw diameter (mm)	90/90	80/90/80
	L/D	25/1
	Driving motor power (kw)	45/45	30/45/30
	Heating power (kw)	46	50·
	Extrusion capacity(kg/h)	240	250
Moulds die head	Material stirage volume(L)	18
	Parision control	100 dot MOOG wall thickness controller
	Heating power(kg)	28	30
Mouldong clamping system	Mould size (mm)	1600*1500
	Mould thickness range (mm)	910-1300
	Clamping force(KN)	800
Electrical control cabinet	Temperature-controlling	SIEMENS temperature-control modules
	PLC	SIEMENS
	Touching screen	SIEMENS
Hydraulic system	Main oil pump motor	30
	Servo motor	5.5
Basic Parameter	Max, Volume of product(L)	500
	Outer size L*W*L(M)	8*5*5
	Total power installed (kw)	162	181
	Average power consumption (kw)	113	126
	Weight(T)	22	25

SLZK-1000L blow molding machine parameters

System	Item	1 layer	2 layer	3 layer	4 layer
Extruder	Screw diameter (mm)	120	100/100	90/100/90	80/90/90/80
	L/D	28/1
	Driving motor power (kw)	90	55/55	45/55/45	30/45/45/30
	Heating power (kw)	40	46	50	50
	Extrusion capacity(kg/h)	260	320	360	360
Moulds die head	Material stirage volume(L)	45
	Parision control	100 dot MOOG wall thickness controller
	Heating power(kg)	60
Moulding clamping system	Mould size (mm)	1600*1500
	Mould thickness range (mm)	910-1300
	Clamping force(KN)	800
Electrical control cabinet	Temperature-controlling	SIEMENS temperature-control modules
	PLC	SIEMENS
	Touching screen	SIEMENS
Hydraulic system	Main oil pump motor	37kw
	Servo motor	7.5kw
Basic Parameter	Max, Volume of product(L)	1000
	Outer size L*W*L(M)	8*5*5.5
	Total power installed (kw)	180	210	160	310
	Average power consumption (kw)	100	120	160	210
	Weight(T)	21	28	31	38

Our company
Qingdao Weier Plastic Machinery Co., LTD is the director member of WPCC (Plastic &Wood
Production Council of Chinese Plastic Community), now we are Plastic Engineering Technology
Research Institute of Qingdao Science and Technology University Test and Industrialization center.
We cooperated with many domestic universities to develop special plastic machines to meet
domestic and foreign customer's requirement and have a strong association with many
macromoleculeand chemical majors of many universities. At the same time we bring in and absorb
advanced processing engineering of foreign plastic machines to realize chain service of technique
and machines.
Pre-sale We provide presales service in various forms, for example, making investment
budget, manufacturing planning, etc. so that customers make a reasonable plan
with less cost. Investment budgeting---We provide services of product profit analysis,
recommendation of machine and auxiliary equipment and relevant budgeting,
human resources allocation and budgeting. Plant Planning---We provide the mounting dimension of the equipment base,
design
of equipment layout, workshop ventilation, water transmission etc.On-sale Detailed design of workshop lay-out Technological information of provided products Schedule about design, manufacture and installation Working & Producing process Training courses for the technician team so that the installation is safe and
standardAfter-sale For customers buying our products, we provide them training so that they can use
and maintain the machine independently. We will offer to customers technical support in time. If needed, we will offer on-line
guidance and assistance. We can provide free technical guidance if customers need new equipment, add or
rebuild equipment. We will prioritize the product upgrading of previous customers.

---
