High-Precision CNC Drilling Machine for Steel Plate Processing

Product Description

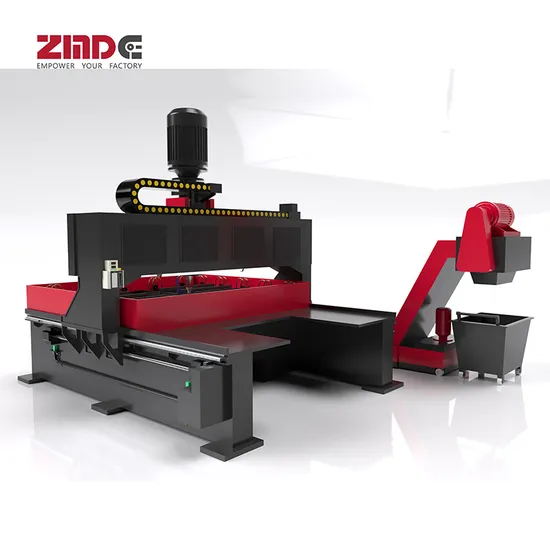

ZMDE Precision Steel Plate Processing CNC Driller

>Unmatched Cost-effectiveness <
1. Our equipment is constructed with solid materials, ensuring a low failure rate and reduced maintenance costs. We use industry-renowned brands for components such as the ball screw, linear guide vice, hydraulic parts, electrical parts, servo motor, and frequency converter.
2. The CRT display facilitates automatic chip removal, drastically cutting down the need for manual cleaning time.
3. This equipment boasts high precision, resulting in a high qualification rate of workpieces and lower consumable costs.
>Effortless Operation, Unrivaled Productivity <
1. The intuitive human-machine interface is clear and visual, allowing the generation of automatic machining programs effortlessly.
2. Controlled by both CNC and PLC, it ensures pinpoint accuracy in positioning.
3. Workpieces are secured using hydraulic clamps, which the operator can control conveniently via a foot switch, making the process labor-saving.
4. Twelve fast hydraulic clamps are strategically placed around the table, enabling the simultaneous clamping of four groups of workpieces.
5. Smaller workpieces can be clamped at the four corners of the working table, significantly shortening the production preparation cycle and boosting efficiency.
6. Clamping smaller workpieces at the corners of the table can further reduce the production preparation period, enhancing productivity.
> Assured Quality, Versatile Applications <
1. Critical components such as the gantry, column, and table are made of robust materials, with the main machine weighing up to 6300kg, ensuring durability and reliability.
2. This machine serves various industries and is vital for plate processing operations.
3. It accommodates a broad range of drilling diameters, from 12mm to 50mm.
> Perfect for Diverse Production Scenarios <
1. Ideal for continuous production runs of single-type flat workpieces.
2. Suitable for small batch productions of multi-species workpieces, it can process plates of various shapes such as rectangular, round flange, and polygonal. It can also handle two or four different specifications of plates simultaneously.
3. Capable of producing multiple layers of thinner sheets stacked up to a maximum of 100mm drilled holes.
4. The upper computer software automates the processing start and end points, allowing for drilling through holes, blind holes, step holes, and hole-end chamfering.
> Seamless Production Process Automation <
1. Integrated line board with a high degree of automation, automatically positioning according to the drilling program.
2. Automatically adjusts the optimal feeding volume based on different hole diameters.
3. Capable of automatic, continuous processing of large hole diameters and one-time processing and molding.
4. Equipped with an automatic chip removal function, ensuring a smooth and efficient operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
