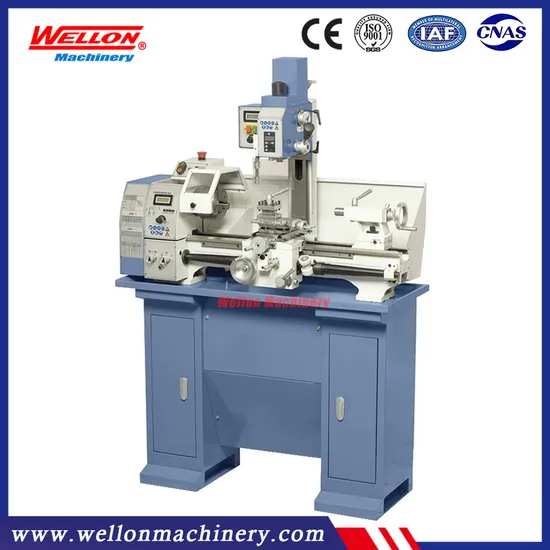

Combination Bench Lathe Machine JYP250V Universal Bench Lathe

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Most popular, widely useful combination machine.
V-way bed is hardened and precision ground.
Adjustable height head gets greater capacity.
MT4 spindle hole gets greater capacity.
Spindle is supported by high precision bearing.
T-slotted cross slide.
Power longitudinal feed allows threading.
Adjustable gids for slideways.
Right and left hand threads cutting is available.
Spindle feeding handle with softgrip for perfect operation.
Tailstock can be off set for turning tapers.
Geared mill head gets more toqure.
Mill head can be tilted +/-90 degree.
Tolerance test certificate, test flow chart included.
Technical parameter:

Model	JYP250V
Distance between centers	550 mm/750mm
Center height	125 mm
Swing over bed	250 mm
Spindle bore	26 mm
Taper at spindle bore	MK 4
Speed range, stepless	50 - 2000 rpm
Longitudinal feed	(6) 0, 07 - 0, 40 mm/rev
Cross feed	(4) 0, 03 - 0, 075 mm/rev
Metric thread	(18) 0, 2 - 3, 5 mm
Inch thread	(21) 8 - 56 threads/1"
Travel of tailstock sleeve	70 mm
Taper of tailstock sleeve	MT 2
Motor power	0.75/1.1 kw
Milling attachment
Drilling capacity in steel	16 mm
Face mill capacity max.	50 mm
End mill capacity max.	16 mm
Throat	150 mm
Spindle speed, stepless	50 - 2250 rpm
Spindle taper	MT 2
Mill head tiltable	-90° to +90°
Height adjustment of mill head	195 mm
Motor power	500w
Machine dimensions (W x D x H)	1210/1410x610x860 mm
Weight approx.	210/230kg

Standard accessories:
Change gears
Oil tray
Splash guard
3-jaw chuck
Dead centers
Oil gun
Some tools
Optional accessories:
Steady rest
Follow rest
Face plate
Turning tools-
Quick change tool post
4-jaw chuck
Live center
Drill chuck
Stand base
Collet chuck kits
2 axis DRO
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
