Integrated Condensing Unit Container with Evaporation Condenser

Product Description

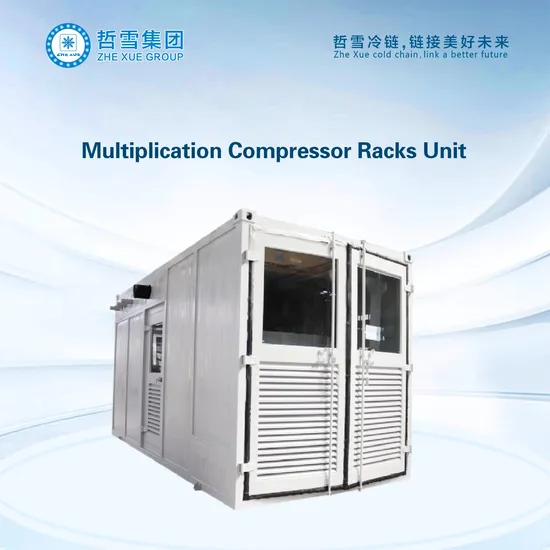

Integrated condensing unit container with evaporation condenser
Products Features Assemble at factory , save construction time at site With container, no need room for machine , saving the construction cost Portable, can be used for other project Use Hanbell screw condensing unit inside Have two series , one for 0~4ºC room, another for -15~-22ºC room Just connect the power , then the machine can work directly .
Features of condensing unit inside container: 1.Reliable system: famous brand compressor, PLC controller, high efficient oil separating system , 2.German bitzer low temperature screw compressor, with the features of high efficiency, long service life, tiny vibration and low noise
3.this series products have a complete set of world famous components, protection devices for compressor wrong direction, over heat, over load, over discharging temperature, low oil level, over high/low pressure of oil flow etc.
4.the unit is matched with economizer, which can effectively increase the capacity for low temperature operation.
Components of condensing unit inside container:
Compressor, condenser , pressure controller, pressure oil gauge, pressure sensor,filter vat filter core, liquid angle valve , accumulator, suction check valve, oil separator , oil safety valve, oil pipe ball valve, oil cooler, oil cooler valves, filter, oil dry filter, filter core, solenoid valve, economizer, sight glass, expansion valve,touch screen, LP sensor , PLC controller, Siemens HMI.
Specification:

Technical Data
room temp.		Unit Model	Compressor model * Qty	Cooling capacity(KW)	Power	COP	Overall size (L*W*H )mm	Pattern	supply pipe Diameter	Suction pipe diameter	Evaporative condenser Suggested
Freezer	0~4ºC	MHZLGF-60MY	RC2-230*1	149.5	51.8	2.89	3800*2410*4320	A	DN32	DN80	YHR-430
		MHZLGF-70MY	RC2-260*1	167.6	58.2	2.88	3800*2410*4320		DN32	DN80	YHR-475
		MHZLGF-80MY	RC2-310*1	204.2	69.7	2.93	4000*3010*4320		DN32	DN80	YHR-550
		MHZLGF-100MY	RC2-370*1	246.3	81.8	3.01	4000*3010*4320		DN40	DN100	YHR-670
		MHZLGF2-120MY	RC2-230*2	299	104	2.88	5275*2450*2800	B	DN40	DN100	YHR-870
		MHZLGF2-140MY	RC2-260*2	335.2	116	2.89	5275*2450*2800		DN40	DN100	YHR-940
		MHZLGF2-160MY	RC2-310*2	408.4	139	2.94	5275*2450*2800		DN40	DN100	YHR-1050
		MHZLGF2-200MY	RC2-370*2	492.6	164	3.00	5275*2450*2800		DN50	DN150	YHR-1285
Chiller	-15~-22ºC	MHZLGF-60LY	HSN7451-60*1	91.1	47.4	1.92	3800*2210*3255	A	DN32	DN80	YHR-250
		MHZLGF-70LY	HSN7461-70*1	102.9	51.4	2.00	3800*2210*3255		DN32	DN80	YHR-270
		MHZLGF-75LY	HSN7471-75*1	108.3	57	1.90	3800*2410*3895		DN32	DN80	YHR-300
		MHZLGF-110LY	HSN8561-110*1	160.5	81.5	1.97	3800*2410*4320		DN32	DN100	YHR-430
		MHZLGF-125LY	HSN8571-125*1	179.1	91.2	1.96	3800*2410*4320		DN40	DN100	YHR-495
		MHZLGF-160LY	HSN8591-160*1	224	112	2.00	4000*3010*4320		DN40	DN100	YHR-670
		MHZLGF2-120LY	HSN7451-60*2	182.2	94.8	1.92	5275*2450*2800	B	DN40	DN100	YHR-495
		MHZLGF2-140LY	HSN7461-70*2	205.8	103	2.00	5275*2450*2800		DN40	DN100	YHR-550
		MHZLGF2-150LY	HSN7471-75*2	216.6	114	1.90	5275*2450*2800		DN40	DN100	YHR-595
		MHZLGF2-220LY	HSN8561-110*2	321	163	1.97	5275*2450*2800		DN50	DN150	YHR-870
		MHZLGF2-250LY	HSN8571-125*2	358.2	182	1.97	5275*2450*2800		DN50	DN150	YHR-1050
		MHZLGF2-320LY	HSN8591-160*2	448	224	2.00	5275*2450*2800		DN50	DN150	YHR-1285

---
