Foot Mounted Hopper EPS Polystyrene Compacting Machine

Product Description

The EPS compacting machine is mainly used to crush and compress EPS foam, EPE PUR EVA and other foam materials.
The EPS polystyrene compacting machine is controlled by a PLC-based automatic control system and peripheral circuits, and its performance is quite stable. A larger compression ratio and better quality foam cold pressed blocks can be achieved.
The volume of the material is reduced through the filter on the crusher and compressor, and then the material will fall onto the screw. The main motor will push the material forward through the screw. At the same time, the hydraulic system of the die head is closed to compress the EPS foam material. , these materials will become blocks, and the volume will be reduced by 50 times, making it easier to carry and transport. Machine Advantage
The EPS Compaction Machine can shred and compact EPS polystyrene foam materials of big size and light weight into briquette of high density and small size.It is expensive to transport loose foam materials.Cause 95% of polystyrene beads are air,so it is nessesary to compact it and transport it.
We see foam waste scattered everywhere with small volume,we can drive a truck with the compactor on truck to go everywhere to collect and compact these foam waste.
We have EPS compaction machine with motor and diesel engine powered,we have also hydraulic + screw type compact machine..Buyers can choose from our catalog.
Compact system

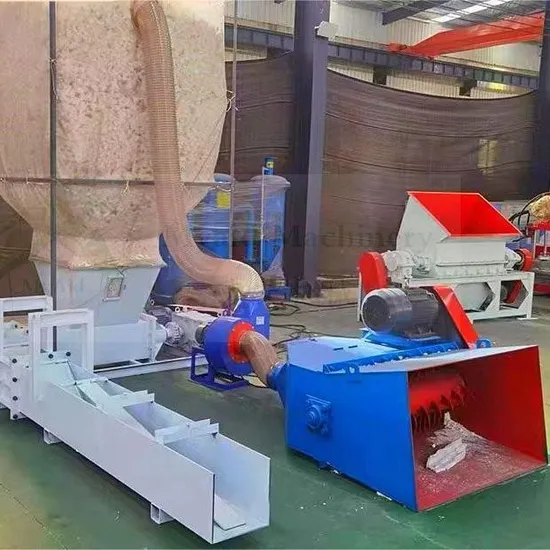

To get biggest compact ratio,best compact briquette quality,biggest capacity.users can install a silo on the hopper of comapct machine and a split shredder.Just as the below picture. Machine Application

FAQ
Q: What type of compact machine you have available ?
A: Hopper type with horizontal,vertical and tilt types are available.
Q: What type of powers for compact machine you have available ?
A: Motor type, diesel engine type and hydraulic type of EPS compact machine.
Q: Any screw inside the hydraulic power EPS foam compact machine
A: Yes. Principle
Machine Parameter

Model No.	300E	300H	300V	400H	400V
Brick Size	300*300mm	300*300mm	300*300mm	400*400mm	400*400mm
Capacity	150kg/h	150kg/h	175kg/h	250kg/h	300kg/h
Diesel Engine	Single cylinder	Single cylinder	Single cylinder	Four cylinders	Four cylinders
	18kw	22kw	22kw	48kw	48kw
	L25	L32	L32	4102	4102
	Turn on automatically by battery power or manually by rocker
Hopper Size	830*760mm	830*760mm	1100*800mm	1200*1000mm	1200*1000mm
Machine Size	3000*1500*1200	3000*1700*1200	3000*1700*1400	4600*1600*1600	4600*2800*1400
Machine Weight	1000	1050	1050	1600	1600
Motor Power - optional	11kw	11kw	15kw	15kw	22kw
