Glass Fiber Reinforced Materials Insulating Glass Warm Edge Spacer Bar 8A-24A Series

Product Description

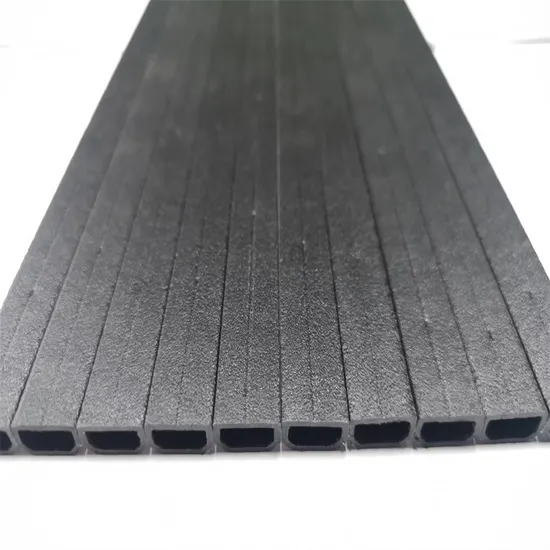

GLASS FIBER REINFORCED MATERIALS INSULATING-GLASS WARM SPACER BARS: Specifications:
Material: Glass fiber reinforced material Wall thickness: 0.60mm Height: 7.5mm Color: Customizable Width options: 8A, 10A, 12A, 14A, 15A, 16A, 18A, 20A, 22A, 24A Length: 5m (customizable) Inserts and corner pieces: Steel and nylon
Product Description: Glass Fiber Reinforced Insulating Glass Warm Spacer Bar The Glass Fiber Reinforced Insulating Glass Warm Spacer Bar from Zibo Chico International Co., Ltd. offers the following technical characteristics:
Effectively blocks heat conduction through the glass edge with low thermal conductivity. Does not contain metal materials. Excellent drooping strength and straightness, ensuring no step in three glass and two cavity hollow glass. Outstanding anti-condensation performance, preventing condensation inside the insulating glass. Utilizes cutting-edge technology for improved air tightness, energy efficiency, and environmental friendliness. High-end insulation materials for enhanced product longevity. Corner Processing: Can be heated and bent by a bending machine for beautiful corners and good air tightness. Can be directly plugged in using a special angle plug-in. Can be welded with the company's welding machine for aesthetically pleasing corners, good air tightness, and increased production efficiency. THERMAL DATA

	Wooden window		aluminum window		plastic window
Window frame heat conduction coefficient uf	1.40W/mak		1.90W/m2k		2. 00W/m2k
Glass thermal conducti -vity ug	1.10W/m2k		1. 10W/m2k		1. 10W/m2k
	Aluminum spacer	Osek Insulating glass warm spacer bars	Aluminum spacer	Osek Insulating glass warm spacer bars	Aluminum spacer	Osek Insulating glass warm spacer bars
W value of glass edge	0.070W/mk	0.039W/mk	0.070W/mk	0. 038W/mk	0.106W/mk	0. 050W/mk
Whole window thermal conductivity Uw value	1.37W/m2k	1.28W/m2k	1.53W/m2k	1.44W/m2k	1.64W/m2k	1.49W/m2k
Temperature Coefficient	0.51	0.62	0.55	0.65	0.55	0.69
Surface temperature inside the insulating glass	5.3°C	8.rc	6.5°C	9.0°C	6.5°C	10.3°C
Glass thermal conducti -vity ug	1.20W/m2k		1.20W/m2k		1.20W/m2k
W value of glass edge	Aluminum spacer	Osek Insulating glass warm spacer bars	Aluminum spacer	Osek Insulating glass warm spacer bars	Aluminum spacer	Osek Insulating glass warm spacer bars
	0. 067W/mk	0. 036W/mk	0. 067W/mk	0.036W/mk	0.104W/mk	0. 050W/mk
Whole window thermal conductivity Uw value	1.43W/m2k	1.34W/m2k	1.58W/m2k	1.51W/m2k	1.69W/m2k	1.55W/m2k
Temperature Coefficient	0.51	0.62	0.55	0.65	0.55	0.67
Surface temperature inside the insulating glass	5.3°C	8.5°C	6.5°C	9.4°C	6.7°C	10.2°C

Product Description Introducing the Stainless Steel Coated Heating Edge by Zibo Chico International Co., Ltd. This innovative heating edge is designed to provide efficient heating while maintaining a sleek and modern look.
Product Specifications: Total window area (Aw): 1.82m2 Window frame area (30%): 0.55m2 Glass area (70%): 1.27m2 Length of Insulating glass warm spacer bars (Lf): 4.45m Features: Durable stainless steel coating Efficient heating technology Sleek and modern design Benefits: Provides consistent and reliable heating Enhances the overall aesthetics of the window Easy to install and maintain Upgrade your windows with the Stainless Steel Coated Heating Edge for a perfect blend of functionality and style.

---
