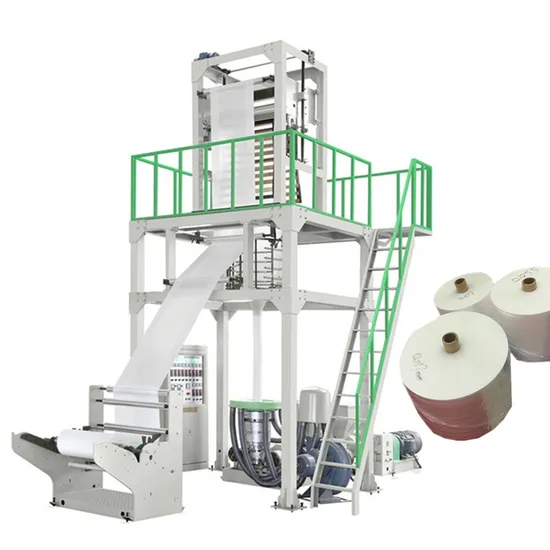

Hot Sale Three-Layer Film Blown Extruder Machines for Blowing Plastic PE ABA Film

Product Description

Ruian Mingde Machinery Co., Ltd. is a professional manufacture of plastic machinery company. Main products: one to three layer co-extrusion rotary die film blowing machine, P E single and double winder film blown machine, high speed biodegradable film blowing machine,printing machine and bag making machine air cooling heat cutting recycling machine.
We have the right of imports and exports, work on the quality of the first faith-based service of customer focus, production according to the customers requires, highly speak by customers, have sold to more than 50 countries. have many patents, Got Provincial Science and technology S E M S and National high-tech enterprise in 2018. Next five years we will focus on researching environmental high output low consume new products, standardizing the internal structure of enterprise, Enhance Visibility Mingde brand in the world. Known in the world, reliable by the customer. Mingde machinery are willing forward to cooperation with you making brilliant future.

Model	MD-ABA45H	MD-ABA5O	MD-ABA50/55	MD-ABA55	MD-ABA65
Suitable Material	HDPE	HDPE	HDPE	HDPE	HDPE
Max Film Width(mm)	800	800	1000	1200	1500
Film Thickness(mm)	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08	HD:0.008-0.08
Max Extrusion OutputHD	100kg/hr	80kg/hr	80kg/hr	120kg/hr	150kg/hr
Gear Box	146*2	173*2	173/180	180*2	200*2
Screw Diameter(mm)	φ45x2	φ50x2	φ50/55	φ55x2	φ65x2
Screw's Material	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy	38 CRMOALA Alloy
Barrel's Material	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA	38 CRMOALA
Barrel's Cooling Fan	200Wx3x2	200Wx3x2	200Wx3x2	200Wx3x2	200Wx4x2
Thermo Control (zone)	3x2	3x2	3x2	3x2	4x2
Driving Motor (kw)	15*2	18.5*2	18.5/22	22*2	30*2
Die Size (mm)	HD:80/100	HD:80/100	HD:φ100/120	HD:φ120/150	HD:φ200/220
Screen Changer	Standard manual	Standard manual	Standard manual	Standard manual	Standard manual
Thermo Control(zone)	3	3	3	3	3
Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring	φ820mm Dual Air Ring
Cooling Blower(kw)	5.5	5.5	5.5	5.5	7.5
Center Steady Stick	1 PCS	1 PCS	1 PCS	1 PCS	1 PCS
Roller Width (mm)	φ138x850	φ138x850	φ138x1100	φ138x1300	φ165x1600
Embossing Roller Width	750mm	750mm	950mm	1200mm	NO
Take-UP Motor (kw)	1.1	1.1	1.1	1.5	1.5
Take-UP Speed(M/min)	10-80	10-80	10-80	10-60	10-60
Height adjustable type	700mm	700mm	700mm	700mm	700mm
Type of Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder	Surface Friction Winder
Roller Width (mm)	900	900	1000	1300	1600
Winding Motor(KW)	1.5	1.5	1.5	1.5	1.5
Winding Speed(M/min)	10-80	10-80	10-80	10-60	10-60
Voltage	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE	380V 50HZ, 3PHASE
Cover Dimensins(m)	6.2x2.75x5.2	6.2x2.75x5.2	6.5x3x5.2	6.5x3.2x5.5	7x3.2x6.5

---
