US$30,000.00-80,000.00
|
1 Set
(MOQ)
|
Basic Info.
Product Type
Granulating Extruder
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Application
Power Cable Extrusion Machine
Cable Diameter
According to Different Extruder Size
Machine Size
GF-70/80/90/120
Automatic Grade
Automatic
Service
Technical Support, Training
Transport Package
Plastic Film+Wooden Package
Production Capacity
4set Per Month
Packaging & Delivery
Package Size
1680.00cm * 1310.00cm * 1350.00cm
Package Gross Weight
50.000kg
Product Description

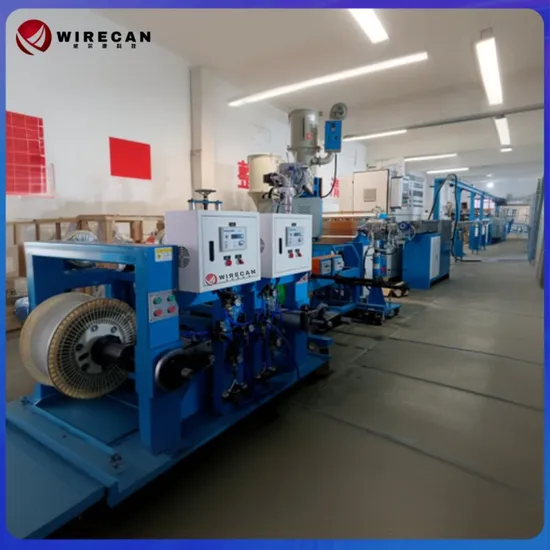

1, Cable making Equipment application:
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2, Cable-making equipment Technical parameters:
| |
| machine type | GF-65 | GF-70 | GF-80 | GF-90A | GF-90B | GF-120 | GF-150 | GF-200 |
| pay-off shaft | double-shaft type | 800-1600 | 1000-2000 | 1600-2500 | 1600-3150 |
| screw diameter | ø65 | ø70 | ø80 | ø90 | ø120 | ø150 | ø200 |
| screw L/D | 25:01:00 |
| MAX. extrusion output | 130kg/h | 150kg/h | 200kg/h | 250kg/h | 280kg/h | 400kg/h | 650kg/h | 900kg/h |
| motor power | 25HP | 30HP | 40HP | 50HP | 60HP | 70HP | 100HP | 150HP |
| wire diameter | ø1.2-10mm | ø1.5-12mm | ø2.0-20mm | ø3.0-25mm | ø10-40mm | ø15-60mm | ø30-120mm | above ø40mm |
| cooling device | single layer/double layers U type | single layer U type |
| haul-off power | 5HP | 7.5HP | 10HP | 15HP | 20HP | 10HP |
| MAX. line speed | 500m/min | 450m/min | 400m/min | 200m/min | 100m/min | 60m/min | 60m/min |
| take-up type/power | double-shaft bundle packaging | ø1000mm-2000mm | ø1600mm-2500mm | ø1600mm-3150mm | ø2000mm-3500mm |
3. Equipment configuration
| No. | All parts' name | Qty |
| 1 | Pay off rack | 1set |
| 2 | Copper wire pre-heater | 1set |
| 3 | Straightener platform | 1set |
| 4 | Main motor(free-adjustable) | 1set |
| 5 | Automatic dryer and hopper | 1set |
| 6 | Electric apparatus main control cabinet | 1set |
| 7 | Movable water trough | 1set |
| 8 | Laser diameter gauge | 1set |
| 9 | High speed printing machine | 1set |
| 10 | Fixed water-trough | 1set |
| 11 | Double-wheel capstan | 1set |
| 12 | Horizontal wire-accumulator | 1set |
| 13 | High frequency sparker | 1set |
| 14 | Double-shaft take-up machine | 1set |
