V-100 V Shape Powder Cone Mixer Machine V Shaped Mixer

Product Description

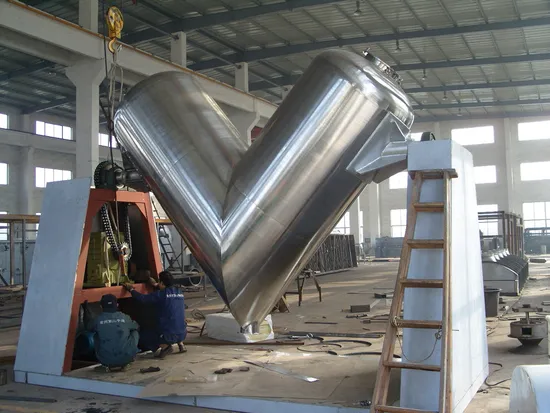

V Type Mixer, Mixng Machine Description The mixing tube structure of V type mixer machine is unique. It is made up of stainless materials. Both inside and outside walls are polished. There is no internal transmission mechanism inside V type mixing equipment and it meets the GMP standard. Application V type mixer machine is widely used in pharmaceutical, chemical and food industries. It is suited for mixing more than two dry powder or granular materials. Features 1. V type mixer machine features beautiful shape, uniform mixing and wide application. 2. In accordance with the user's requirements, we can supply compulsory mixer for the powder and lump materials. 3. Stirring device can be added into V type mixing equipment to break easy-caking materials and further strengthens the mixing effect. Parameters of V Type Mixer Machine

Model & specification	VHJ-0.18	VHJ-0.3	VHJ-0.5	VHJ-1.0	VHJ-1.5	VHJ-2.0	VHJ-2.5	VHJ-3.0	VHJ-4.0	VHJ-5.0	VHJ-6
Productive capacity (kg/time)	72	120	200	400	600	800	1000	1200	1600	2000	2400
Model of vacuum pump	W2	W2	W2	W3	W3	W3	W3	W4	W4	W4	W4
Feeding time (min)	3-5	3-5	4-6	6-9	6-10	8-13	8-15	8-12	10-15	15-20	18-25
Mixing time (min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	8-12	8-12	8-12	8-12
Total volume (m3)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0	6.0
Stirring speed (r/min)	12	12	12	12	12	12	12	10	10	10	10
Power of motor (kw)	1.1	1.1	2.2	4	4	5	7.5	7.5	11	15	18.5
Rotating height (mm)	1580	1760	2400	2840	3010	3240	3680	3700	4350	4800	5300
Weight (kg)	280	320	550	950	1020	1600	2040	2300	2800	3250	3850

Company introduction:
Changzhou No.2 Drying Equipment Factory Co.,Ltd is an old drying enterprise which has 23 years drying history. We have got several patents in different dryers. We have much experience in different drying area. Now it holds more than 100 sets of equipment. The company has more than 100 staff and workers, including 15 engineers, with annual value of production more than thirty-eight million RMB.We attach importance to advanced technology, and have cooperated positively with universities and colleges to develop new products by using new technics. We have continuously developed several key and high-tech products with advanced technology both from domestic and abroad.During the past ten continuous years, the company has been appraised as enterprise with high reputation on contract and credit.Bases on the principle of factualism, innovation and mutual benefit, the enterprise is looking forward to creating resplendence with personages from all circles together.
CERTIFICATE
Delivery the dryer:
Foreign customers:
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents meet customer`s requirements.
After-sale service
Provide considerate services to minimize clients` worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

---
