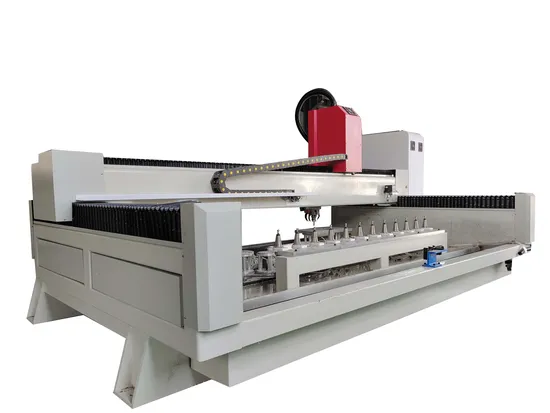

Quartz Stone Countertop Machining CNC Atc Center Stone Edging Machine Marble Quartz Stone Kitchen Cabinet Countertop Circular Imitation Stone Cutting

Product Description

Technical Parameters

Mode	GD-1325	GD-1825
Working area	1300*2500*200mm	1800*2500mm*150mm
Processing accuracy	0.01mm	0.01mm
Repositioning accuracy	0.05mm	0.05mm
Spindle	1.5KW water-cooling	2.2KW water cooling
Spindle rotating speed	3000-24000rpm	0-24000rpm/min
Working speed	0-8000mm/min
Max moving speed	10000mm/min
Driving mode	Ball Screw
Voltage	AC220V/50Hz
Feeding Height	150mm
Drive motor	Stepper motor
Command	G.code , mmg , plt , uoo,HPGL
Compatible Software	Type3, Artcut, ArtCAM, masterCAM
Controlling Systerm	NC Studio
Packing	Wooden case
Net weight	150kg
Parts are optional, configurations can customize

Company information Guandiao
The company has a factory building of 6,000 square meters and an office area of 1,500 square meters. The application is reasonable. The production area is constructed in strict accordance with the national safety and environmental protection policies to ensure a reasonable delivery period.
We have a well-established sales and marketing team, technical research and development team, and after-sales service team to meet the needs of the market and customers.
Packing & shipping
Our service
1. 1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
If you have any questions about us, please contact me with no hesitate.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.

---
