Product Details
Product Description
Product Description

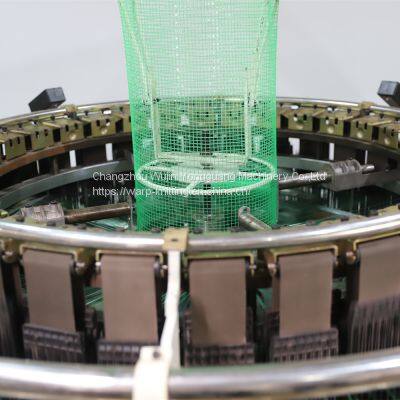

SYZW-4S-850 HIGH SPEED LENO BAG CIRCULAR LOOM is mainly used to produce cylindrical mesh bags for packaging vegetables, fruits and other agricultural products. The suitable raw material is PE or PP. 100% recycled materials can be used also. Usually weft yarn is flat yarn(tape) and warp yarn can be monofilament or flat yarn.
Advantages:
1. The structure design of the whole machine is novel and reasonable, the maintenance is convenient.
2. High speed, low noise , low friction, energy saving , high efficiency.
3. Adopting the interweaving technology, the weft is not easy to loosen, and it is not easy to stretch after filling with fruits and vegetables.
4. The loom is controlled by Inverter, and it will automatically stop if the weft are finished or the warp, weft yarn is cut off, machine also equip with a meter counter.
Technical data:
working width，double flat ： 300-850mm
Number of shuttles per machine : 4
weft density： 10-24pcs/10cm
Speed: 0-100RPM
inner diameter of bobbin: 38mm
core length： 230mm
number of warp yarn ： 512pcs
installed size : 10500mm* 2400mm* 3200mm
main motor power: 2.2kw
lift motor power : 22N
winding motor power: Brushless motor
>>
