Board Edging Saw Panel Trimming Saw

Product Description

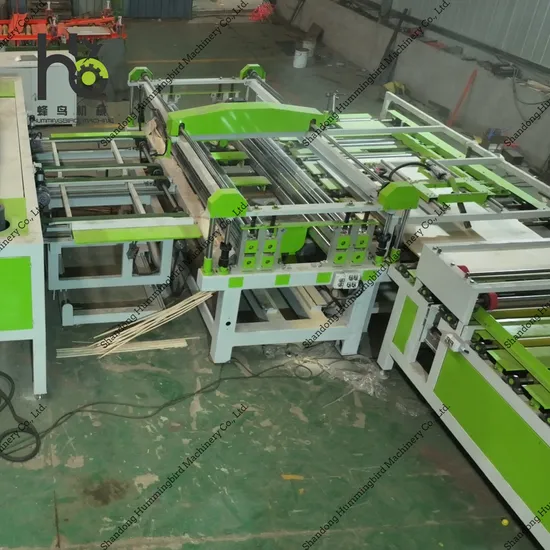

Our edge trimming saw controlled by microcomputer.The use of automatic stacking,saving in labar and resources. Infrared control, high sawing predsion, small error.high degree of automation, large output.The automatic saw consists of infrated posi-tioning, pre plate device, vertical saw car, sawn lengthwise dolly pressing mechanism,sawn lengthwise car chain transmission part, a slitting saw head, crosscut frame.crosscut car, cross cutting sawhead, crosscut car chain transfer part, automatic stack.ing device, the whole action controled by the PLC, the realization of automatic cut-ting and stacking of the saw.
Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!

Product Parameters

Model	HBXB-6041
Cutting Length	2440mm
Cutting Width	1220mm
Saw Web Diameter	305mm
Speed	30-60m/min
Control System	PLC
Total Power	41.8KW
Overall Dimension	8700*4400*1300mm
Weight	5.2Ton

Features
Detail Accessories
Transport
Choose the appropriate means of transport according to the weight, volume and transportation distance of the Edge Trimming Saw. For large and heavy automatic saws, sea transportation by container is generally chosen, and professional transportation vehicles and equipment are used for transportation.

About service
Why Chose Us
FAQ

---
