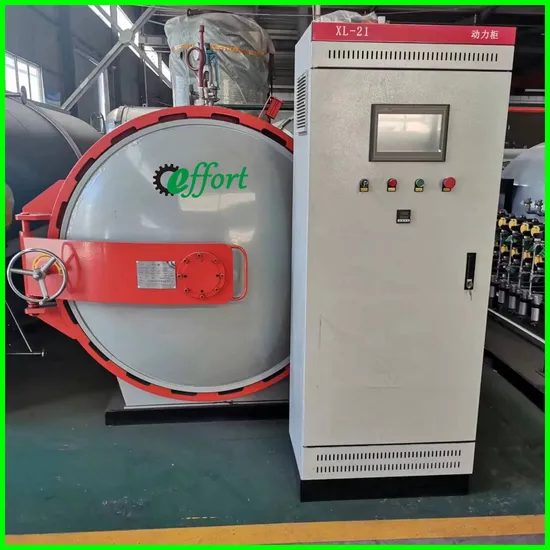

Autoclave Industrial Tank Rubber Vulcanization Tank Rubber Vulcanization Autoclave

Product Description

Autoclave Industrial Tank Rubber Cable Vulcanization Tank
It is mainly used for rubber products curing rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, drying wood,shoes, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, Also widely used in the gypsum and its products and other materials autoclaving.
Our equipment which has advantages of stable and reliable performance is a new type of vulcanizingvessel, the temperature, pressure and time can be controlled automatically and it also easy to operate. And the equipment can save 30% of energy than other traditional equipment.
Working principle for steam hot-air vulcanizing autoclave
The steam enter into the cooling fin which in the tank of the steam hot-air vulcanizing by two sets of automatic valve. The cooling finds arrangement in the tank according to the certain rules. The draught fan which in the back of the tank make the quantity of heat spread evenly by special temperature cycle plates. Heat cycle form even temperature field. Thus it can prevent the different quality of the product because of the uneven temperature and pressure. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.
Working principle for electricity hot-air vulcanizing autoclave
Electric heated tubes which controlled by N groups of separate switch are arranged in the bottom of the tank according to certain rules. Only keep one or two groups of electric heated tubes working after reached working temperature, so it can save the energy and reduce the cost greatly. The temperature of the tank evenly and the pressure has no error, so it can prevent the different quality of the product because of the uneven temperature and pressure. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.

Item	Design parameter
Effective diameter	500-4500mm
Effective length	1-20m
Working temperature	100-450ºC
Working pressure	0.5-5.0Mpa
Raising pressure speed	0.1Mpa/min continuous adjustment
Perssure error	±0.01Mpa
Raising temperature speed	0.5-7 ºC/min continuous adjustment
Temperature go down speed	0.5-7 ºC/min continuous adjustment
Cooling ways	Water cool and wind cool
Point temperature error	±1.2 ºC
Control temperature and test temperature point	2-20 points
Vacuum degree of cavity	-0.098Mpa (absolutely pressure )
Extra vacuum pipe	Extract 2-20 pipe extract and test is independent
Test vacuum pipe	Test 2-20 pipe extract and test is independent
Continuous working ability	≥ 50 hours

Our Services
Pre-sale service
1. Provide customers the parameters and confirm technical data of our machines and plants. within 24 working hrs response if client has question.
2.Share photos and video with clients.
3.Give buyers exact and detailed quotation during 24 hours.
4. Show customers around in our factory or in domestic customers' workshop. Take buyers visit some working plant installed by us!
On-purchase service
1.keep clients informed of the production process.
2.Send photos to clients before shipment for checking.
3.Arrange visa for engineers who will go for guide assembly.
After-sale service
1. Provide installation drawing&operation manual. Training and all-around technical guidance for operation,commission and maintenance .
2. If need our engineer to help install oversea,we act within 48working hrs.
3.Detailed drawings from front view,vertical view,side view.
4. All of our machines with 2 years guarantee except spare parts.

---
