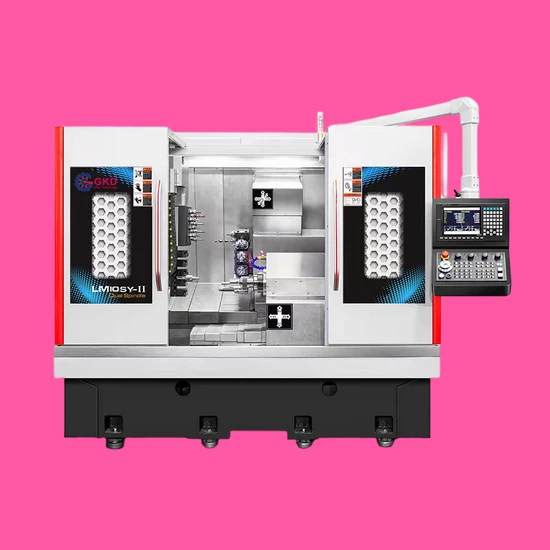

Compact Dual Spindles CNC Lathe with 10 Axis Control Features

Product Description

Precision Redefined: Experience the unparalleled accuracy and efficiency of our High Precision Double Dual Spindles Slant Bed CNC Lathe. This state-of-the-art CNC Turning Center is designed to elevate your manufacturing capabilities to new heights, ensuring seamless and precise operations. CNC (Computer Numerical Control) turning lathes have truly transformed the landscape of the manufacturing industry. By delivering unmatched precision and efficiency, these lathes have set a new standard in the production process. With their versatile capabilities, they can perform an extensive array of operations, including drilling, tapping, turning, and boring. These machines have become indispensable across various industries such as automotive, aerospace, medical, and electronics, where they produce complex and high-precision components with remarkable consistency and reliability.
In this insightful article, we delve into the intricate components that make up a cutting-edge CNC turning lathe. Discover its sophisticated working principle and explore the multitude of applications where these powerful machines make a significant impact. Join us as we uncover the secrets behind their operation and the value they bring to diverse industrial sectors.
Product Parameters

Model	LM-6SY-II
Double spindle/single power turret
Number of axis	10 Axis(X+Z+Y+X1+Y1+Z1+C1+C2+TD+D2)
Max turning diameter on the bed	Ф450mm
Max processing length	400mm
Max processing diameter	Ф400mm
Main spindle nose	A2-5
Main spindle hole	Ф56mm
Bar hole diameter	Ф46mm
Main spindle speed	0-6000rpm
Main spindle Chuck size	6"(Hydraulic chuck)
Sub-spindle nose	A2-4
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	5"(Hydraulic chuck)
Main Spindle power	7.5KW
Sub-spindle power	5.5KW
X1/X2 axis power	3.1KW
Y1/Y2 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power(milling axis)	3.9KW
D2 Axis	2.4KW
Hydraulic pump motor power	2.2KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Turret Outer diameter shank	25mm
Turret Inside diameter shank	Ф32mm
Slider Outer diameter shank	20mm
Slider Inside diameter shank	Ф20mm
TD axis live tools milling speed	0-4000rpm
End milling tool specification	4*ER20
X1/X2/Y1/Y2/Z1/Z2 axis rapid speed	25m/min
X1/X2 axis travel	570mm/590mm
Y1/Y2 axis travel	140mm/540mm
Z1/Z2 axis travel	450mm/300mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	60L
Cooling tank capacity	150L
Machine weight	5480KG
Machine size	2600*2500*2550mm
Controller	Fanuc Oi-TF

Company Profile
For numerous successful years, GKD (Mingju) has passionately dedicated itself to the seamless integration of resources and trailblazing technologies, continuously striving to deliver exceptional quality to customers around the globe.
GKD stands as a distinguished conglomerate focused on the research, development, and manufacturing of advanced CNC machining centers. Nestled near the bustling region of Hong Kong in China, often dubbed as the 'World Factory', GKD, with its strategic European headquarters in Italy (Taiwan), boasts a robust global sales and service network. With five state-of-the-art production bases located in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu, the Group excels in producing an impressive array of vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other sophisticated CNC machine tools and production lines. Proudly positioned as a complete spectrum provider of CNC metal cutting machine tools in China, GKD is a professional manufacturer with a comprehensive industrial chain. Our products find their essential utility across diverse sectors such as aerospace, mold production, automotive, energy, marine, engineering machinery, and 3C electronic products, among other thriving manufacturing fields.
GKD Group pledges unwavering commitment to delivering premium products and all-encompassing solutions, rigorously embracing the principles of high-speed, high-precision, and high-efficiency in intelligent equipment. We consistently provide superior solutions tailored to meet the cost-effectiveness needs of our valued customers. Backed by robust manufacturing capabilities and exceptional after-sales service, GKD has successfully extended its comprehensive range of products and services to numerous countries and regions across the globe.
GKD Group earnestly welcomes the opportunity to serve you with dedication and excellence!
Our Advantages
1. Benefit from Our Extensive Expertise: Dive into a more professional service experience, cultivated through years of excellence in exporting CNC machines.2. Cutting-Edge Craftsmanship: Harness the power of Italian and Taiwanese technical ingenuity to enjoy superior manufacturing capabilities.3. Flexible Payment Solutions: Select from a variety of convenient payment options, including T/T, Western Union, L/C, and Paypal.4. Unparalleled Quality and Value: Experience high-quality products made from safe materials at competitive prices.5. Catering to Your Needs: We accommodate small orders, ensuring that businesses of all sizes can benefit from our offerings.6. Lightning-Fast Communication: Expect prompt responses to your inquiries, ensuring your needs are met swiftly.7. Secure and Speedy Shipping: Enjoy peace of mind with our safe and efficient transportation solutions.8. Tailored Innovation: We offer OEM design services, providing personalized solutions to meet the unique needs of all our customers.
Certifications
Packaging & Shipping
After Sales Service
1) Our quality assurance extends to a full 12-month warranty, commencing when the shipment reaches your destination port. This warranty excludes any physical damage. During this period, we are pleased to offer complimentary replacement parts. To facilitate this, we kindly request users to return any damaged parts to us via courier at their own expense prior to receiving replacement parts. Post-warranty, any necessary repairs or parts replacements will be subject to a reasonable fee. 2) Understanding the challenges of remote maintenance, we have developed extensive online support mechanisms. We offer comprehensive technical assistance through email, MSN/Skype, camera consultations, video guidance, telephone, and fax. This ensures you receive the help needed for installation, operation, adjustments, and maintenance.3) Should our online support be insufficient for resolving issues related to installation or adjustments, we provide Door to Door service. If required, our engineers can be dispatched to your location for assembly, maintenance, or adjustments. For this service, you will need to assist with visa formalities, prepay travel expenses, and arrange accommodation during their visit. Additionally, please provide a translator for the duration of their service. Alternatively, you are welcome to send your engineer to our facility for extensive, complimentary technical training.
FAQ
1. What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What brand of the bearing do you use?NSK from Japan3.When is the delivery time?We will delivery it within 15-30 days after received your payments.4. How to handle the warranty period?During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.5.Can your company send the technical personnel to our company and direct our workers for free?When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD150.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
