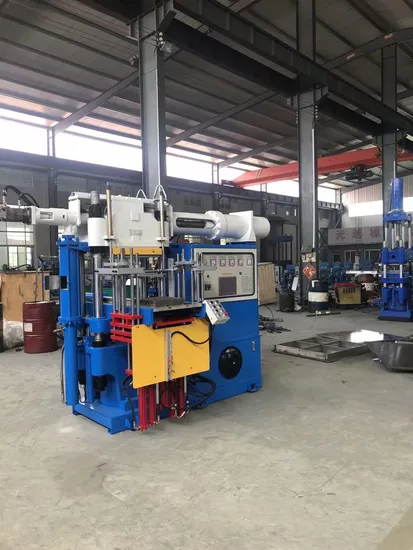

200t Silicon Rubber Injection Molding Machine

Product Description

silicon rubber injection molding machine
XLB serie rubber injection moulding machine is mainly used for all kinds of rubber, bakelite, plastic materials, and other products of the injection and pressure molding, it is especially suitable for high quality requirements, complex shape, thick wall and embedded parts products forming.
1. Injecting Rubber after the mould being blocked,high molding pressure in inner cavity of the mould,high density construction of products,precised size with less scurf.
2. High speed open/close molds,high production efficiency,low blocking speed,protect mold.
3. Automatic in/out mold and ejector device,low labor strength.
4. Optional normal valve or proportional valve,matching-advanced oil way,reduce energy consumption.
5. The electric system adopt PLC programming control,which is easy to be operated.
Qingdao Chaoguangyue Industry Co., Ltd is one of the important backbone enterprises in rubber machinery industry in china and is one member of shandong machinery union company .the company owns powerful technical strength ,advanced technics, the best design and strict quality guarantee system ,which owns a high reputation in china rubber machinery industy .
the main products are rubber vulcanizing machine , open mixing mill, rubber kneader ,rubber refiner ,rubber calender, rubber extruder ,rubber cracker , tire recyling machine and reclaimed rubber machine .the products have sold to more than 20 province and cities in china and have beemn exported more than 10 counties and areas
the company takes"to live by quality".to develop by reputation, to innovate by science and technology. to keep ipproving all the time "as managing ideas,and insists on the principe of "quality is the first ,reputation is the first,client is the first" that will provide you and best service.

Type	XLB-D0.50MN 400X400X1	XLB- D0.80MN 450X450X1	XLB-D1.00MN 500X500X1	XLB- D1.60MN 600X600X1	XLB-D2.00MN 600X650X1	XLB-D2.50MN 650X650X1	XLB-D3.15MN 650X700X1	XLB-D2.50MN 700*700*1
Total pressure(MN)	0.50	0.80	1.00	1.60	2.00	2.50	3.15	2.50
Plate size(mm)	400X400	450X450	500X500	600X600	600X650	650X650	650X700	700*700
Clamping stroke	300	300	300	350	350	380	400	380
Injection pressure	120	120	120	140	140	160	180	160
Injection stroke	320	320	350	350	350	380	400	380
Barrel specifications	70X215	75X225	80X255	85X300	90X320	95X350	100X380	95*350
Main motor power(KW)	2.2+2.2	2.2+2.2	2.2+3.0	2.2+3.0	2.2+3.0	3.0+3.0	3.0+5.5	3.0+3.0
Weight(KG)	1800	2200	2800	4500	6000	7800	11000	8200

---
