Servo Motor Machine for Disposable Tableware Knife Fork Spoon Injection Molding Machine

Product Description

Automatic Plastic Pet Preform Bottle Injection Stretch Blow Molding Machine
Product Parameters

SE-110T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		32		36		40
Theoretical shot volume		cm³		145		183		226
Shot weight (PS)		g		132		167		206
Shot weight (PS)		oz		4.7		5.9		7.3
Length/Diameter ratio		L/D		22.5		20		18
Injection pressure		Bar		2393		1890		1531
Injection rate		cm³/sec		81		102		126
Max.screw speed		rpm		220
Clamping force		KN		1100
Max.daylight		mm		595*545
Open stroke		mm		350
Space Between Tie-bars		mm		410*360
Min mould dimension		mm		170
Mould thickness range		mm		420
Ejector force		KN		40
Ejector stroke		mm		110
No.of ejector pins		unit		5
Max.motor power		KW		15
System pressure		MPa		175
Heater input power		KW		8.6
Oil filling capacity		L		150
Machine size		M		4.2*1.2*1.9
Net weight		KG		3600

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.

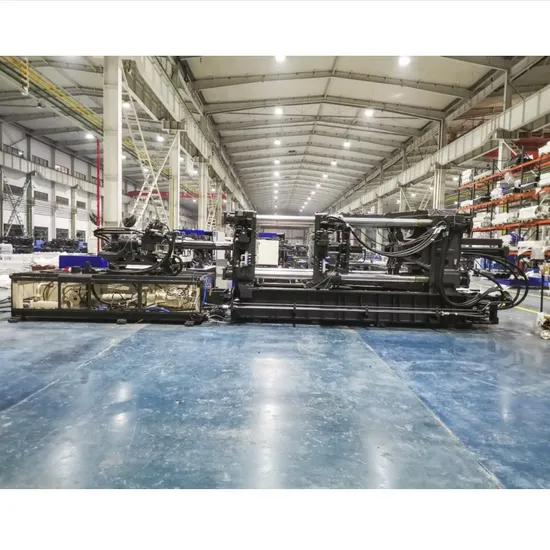

Detailed Photos
