Best Selling Small Gear Head Borehole Drilling Machine CE Certificate (Z-25A)

Product Description

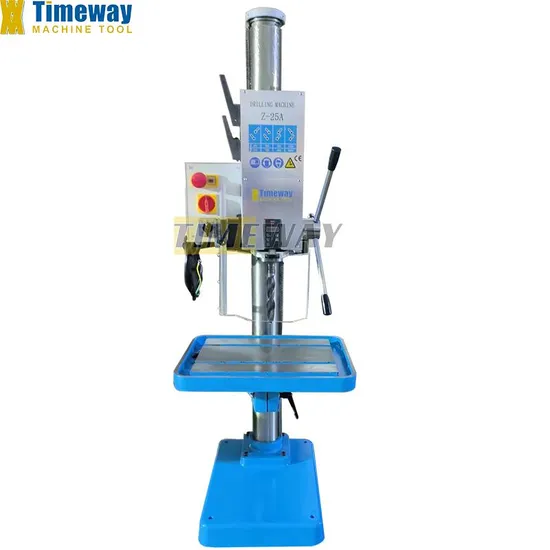

Best Selling Small Gear Head Borehole Drilling Machine Z-25A
Vertical drilling machine is a drilling machine whose main shaft is arranged vertically and the center position is fixed, referred to as vertical drilling.
It is often used in machinery manufacturing and repair factories to process holes for medium and small workpieces,can realize vertical and horizontal milling two processing functions.

Features

Built-in motor, fast speed up to 2900 rpm; Low noise, main engine engages with bamboo gears, suitable for drilling small-bore workpieces; High precision, compact design appearance, with protective power-off function, safe and reliable.
Specification

Model	Z-25A
Max. drilling capacity	25mm
Max. travel of spindle	135mm
Max. tapping capacity	M16
Spindle bore taper	MT3
Max.distance from spindle nose to working surface	940mm
Max.distance from spindle nose to base surface	1250mm
Max. adjustment of worktable and table rest	460mm
Effective working area of table(L×W)	500×360mm
Effective working area of base plate(L×W)	490×400mm
Motor power(50HZ)	0.65kw/0.9kw
Motor power(60HZ)	0.8kw/1.1kw
Spindle feed range	0.1-0.15-0.33mm/rev
Net/Gross weight	210kg/257kg
Packing size	580×730×1820mm

---
