Product Details
Product Description
Product Description
1.2，parameter
Type
| TMP-70100
|
| HS CODE | 8443192290 |
Worktable size(mm)
| 800*1100
|
Max print area(mm)
| 700*1000
|
Max plate size(mm)
| 1000*1300
|
Min plate size(mm)
| 550*650
|
Thickness of substrate (mm)
| 0-20
|
Printing speed(pcs/h)
| 500-1200
|
Working air pressure(Mpa)
| 0.3-0.5
|
Gas consumption(0.6Mpa)(L/pcs)
| 13/pcs
|
power(kw)
| 2.3
|
Work table minimum relative height (mm)
| 820
|
Overall Dimension(l×w×h)(CM)
| 160*125*130
|
| Plywood | 177*138*145=3.3CBM |
weight (kg)
| 485
|
Rated voltage(V/Hz)
| 220V50Hz
|
Model Parameter
| TM-UV750-L
|
Conveyorbelt width(mm)
| 730
|
Effective range (mm)
| 750
|
Product max height (mm)
| 40
|
Conveyor speed (m)
| 2~20
|
Power(P/V/Hz)
| 3/380/50
|
UV lamp(KW/2pcs)
| 5.6
|
Conveyor power(W)
| 90
|
Total power(KW)
| 12.1
|
Dimension(L*W*H)
| 4050*1200*1350
|
| Plywood | 4.2X1.2X1.66m= 8.5CBM |
Weight(kg)
| 300
|
| Robot arm |
Type
| robot arm 1500
|
Working air pressure(Mpa)
| 0.3-0.5
|
Gas consumption(0.6Mpa)(L/pcs)
| 0.5
|
power(kw)
| 0.75
|
Rated voltage(V/Hz)
| AC220v/50Hz
|
Take the feed rate (pcs/h)
| 1000
|
Dimension(L*W*H)mm
| L1500* W 700* H 200
|
weight(kg)
| 40
|
| all above plants /2 plywood /930kg/ 12.6m³ |
Why is this product important?
The paper printing industry usually has silk screen printing and offset printing
Q1: Why choose silk screen?
Answer 1: The ink of silk screen printing is several times or even tens of picometres thicker than that of offset printing, so if you look closely, you will find that the silk screen printing will be a little raised, and you can feel the thickness of the silk screen printing by touching it with your hand. This characteristic of silk screen printing is not available in offset printing, and offset printing is basically very flat.
Therefore, if there is a requirement for the three-dimensional effect of the product pattern, or the artistic effect is exquisite, and the equipment investment budget does not want to be too large, silk screen printing will be selected.
Q2: Why choose this uv screen printing?
Answer 2: Because the fastest drying is uv ink.
Saves a lot of stacking space compared to using self-drying inks
Compared with the use of ink that requires infrared drying, the equipment investment is much less, the equipment occupies a small area, and the power consumption is less.

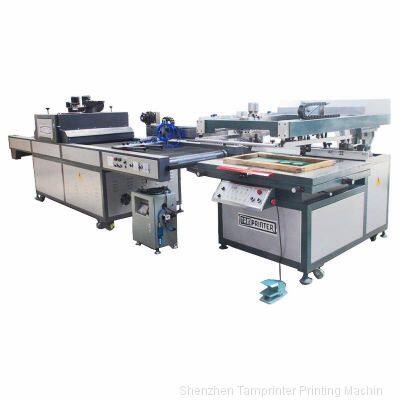

Question 3: Why is it equipped with a diagonal arm screen printing machine? Why is it equipped with a blanking manipulator?
Answer 3: The inclined arm screen printing machine is the cheapest style of the automatic screen printing machine. Paper printing usually does not require too high precision, so the suitable one is the best. Equipped with a blanking manipulator to save labor, and automation is not easy to make mistakes.
3. Why you are worth buying
Market advantage
South America and Europe most channel sales do well,
Aluminium labels printing ,Aluminium ceiling auto screen print, stainless labels printing, polycarbonate labels screen printing, brass signs screen printing, PVC signs embossing,3M self-adhesive stickers printing market. . . Etc.
Technical advantages
Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam,Photoshop,AI,Coreldraw; ODM & OEM.
Whether you're well prepared, running out of time or on a tight budget we can offer a solution that fits your needs.
Factory advantages
Tamprinter printing machinery group company have import and export rights and general taxpayer qualifications,Independent brand.Production, sales and service integration.
>>
