Rubber Sheet Belt Cutter Machine

Product Description

Rubber Sheet Belt Cutter Machine
Product introduction
Name: Rubber Cutter Machine
Model: FTJ600 Fixed blades
Descriptions of Rubber Cutter Machine:
1.The Rubber Sheet Belt Cutter Machine is used for cutting various kinds of rubber sheets, plastic,leather,belt, cardboard and other nonmetallic material. It is adopted the round blade, the width of cutting strips is regular. The distance between blades cannot be adjusted.
2.The customized rubber sheet slitting machine can cut strips width is 9mm and 18mm, that means one machine with two tool shafts, one is 9mm, another is 18mm, Users can change the tool shaft according to production needs.
Advantages of Rubber Cutter Machine:
1)The cutting tool structure is adopted fixed blades, high cutting precision.
2)Blade material is high speed steel 9255, The knife edge is sharp and the incision is straight and beautiful, and blades with long service life.
3.) Feed table is installed limited position device, it can ensure straight cutting.
Technical parameters of Rubber Cutter Machine:

Working width	Cutter shaft	Motor power	Max. Cutting thickness	Control mode
600mm	φ45mm	2.2KW	20mm	Frequency control
Blade size	Blade material	Slitting width	Cutting speed	Cutting tool structure
OD130mm Thickness 2mm	High speed steel 9255	9mm, 18mm	Adjustable	Fixed type

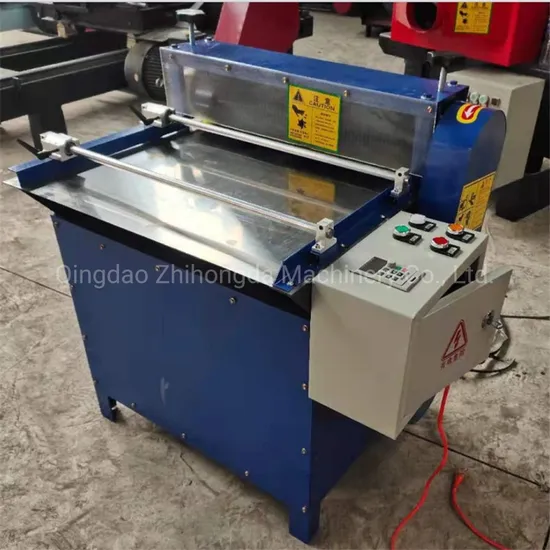

Product display
Package and Delivery of Rubber Sheet Slitter Machine:
Before we quote, please kindly tell the following parameters:
1. What is the maximum of your sheet? Thickness?
2. What is the width range of slitting strip? Then the blades adjustable or fixed? Blades number?
3. What is the raw material of your sheet? What is the material hardness?
Thank you for your time!

---
