X6242 Universal Milling Machine with CE Approved

Product Description

Main Feature for X6232B
Retangular guide rail,good stability
High-frequency hardend slide rails
X.Y Z axis auto feeding
Milling Machine has added 360 degree swivel table
Specification for X6242 Universal milling machine

Specification	Unit	X6242
Worktable size	mm	420x1800
T slot(Nx W x D)	mm	3x18x90
Max.loading of worktable	kg	800
Worktable travel:Longitudinal/Cross/Vertical(Y/X/Z)	mm	1200/1180,360/350,470/450
Max.rotary angle of worktable		±45°
Horizontal spindle taper		7:24:00/ISO50#
Horizontal milling spindle bore	mm	29
Distance from horizontal milling spindle face to worktable	mm	30-500
Distance from horizontal milling spindle center to arm	mm	201
Vertical/horizontal milling spindle bearing diameter	mm	95/100
Vertical spindle taper		7:24:00/ISO40#
Vertical spindle bore	mm	20
Distance from vertical spindle face to horizontal spindle center	mm	60-140
Distance of vertical spindle movement	mm	80
Rotary angle of universal milling head		360°
Horizontal spindle speed rang/steps	rpm/steps	30-1500/18
Vertical spindle speed rang/steps	rpm/steps	52-1400/12
Feed speed steps	steps	18
Feed speed range:X/Y/Z	mm/min	22-1100,22-1100,8.3-410
Rapid feed speed range:X/Y/Z	mm/min	2400/2400/900
Main motor power/rotating speed	kw/rpm	11/960
feed motor power/rotating speed	kw/rpm	3/1420
Coolant pump power/rotating speed	kw/ L/min	0.12/2760
Vertical milling head motor power/rotating speed	kw/rpm	3/1420
Machine dimension	mm	2522x2262x2210
Machine weight	kg	5300

Standard accessories
working light,coolant system,tool arbor,Milling arbor,Arbor for face milling,Falt key, Oil gun, collect chuck
tool box with tools,Accuracy test list,English operation manual.
Optional accessories:
Milling chuck, vertical milling head,slotting head,rotary table, machine vise, dividing head
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

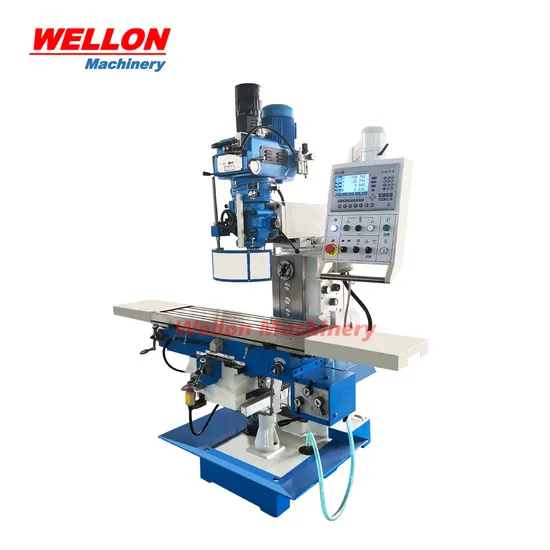

Machine's Pics.
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
