Aluminum Frame Bending Machine Aluminum Bending CNC Machine for Bending Aluminum Profiles

Product Description

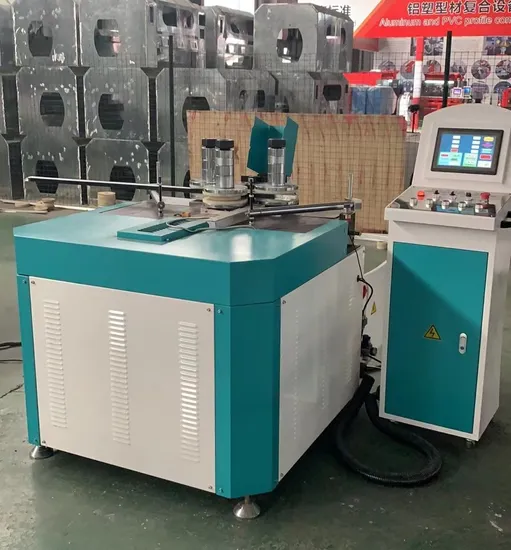

CNC Roll Bending machine WH200-CNC
Product Description
1.1 This CNC Roll Bending Machine, is suitable for various metal profile and irregular profiles rolling. The machine was controlled by Siemens PLC, easy for operation.
1.2 This machine is mainly for iron, steel, aluminum and other special-shaped material of metal profiles, as well as profiles of arc bending processing operations, is a ideal equipment for furniture manufacturer, iron works manufacturers, aluminum Windows and doors manufacturer, iron craft manufacturer. Automatic numerical control system, easy operation, bends round high precision, completely solve the inaccurate product arc bending deformation, surface scratches , fold the curved arc industry challenges.
1.3 CNC Software, make profile arc bending operation is very simple. Color touch-screen operation automated control, clear interface, convenient operation simple.
1.4 Imported PLC integrated control, with automatic detection, diagnosis function, circuit high certainty, environmental suitability to the job.
2. Parameter

2.1 Power supply :380V/50HZ
2.2 X axis maximum torque: 2000N/m×3=6000N/m
2.3 Power :5.2KW
2.4 Y axis feed stroke :0~220mm
2.5 Maximum diameter of roller mold : 300mm
2.6 Processing profile range: Height 150× Width 150mm
2.7 Roller diameter :60/mm (Can be design according need)
2.8 Min processing radius :L100mm( inside )
2.9 Y axis cylinder thrust :20 ton
2.10 Y axis cylinder positioning accuracy :±0.1mm
2.11 Dimensions :Operate table: 500*510*1500mm
main parts: 1300*1100*1500mm
2.12 Weight: 1000kg Detailed Photos
Cutting samples
Packaging & Shipping
Take the professional packaging of double-head saw cutting machine as an example:
1. Full film packaging of double-head saw cutting machine;
2. Anti-collision packaging edge;
3. Fumigation-free plywood boxes and pallets with iron strapping.
Company Profile
Shandong Weike CNC Machinery Co., Ltd. is a well-known manufacturer specializing in the research, development, production, and sales of aluminum doors, windows, and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have three large production workshops, strong mechanical processing supporting capabilities, a high-quality scientific research team, and a high-tech production team. We have strong research and development strength, a perfect product system, and insist on independent innovation to continuously improve products in scientific and practical ways. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales, and service.

Certifications
After Sales Service
1. 2-year warranty. Provide a full range of technical support for life

2. From Monday to Sunday, 9 a.m. to 18 p.m.Experienced technician to guarantee lifetime online support (by WhatsApp, WeChat,Email,Facebook,Instagram) in English,Chinese,Hindi,Bengali ,Urdu. So there is no need to worry about technical support due to the time difference.

3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada,Mexico, The United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia etc.
Exhibition
FAQ
Q: How do I install and run the machine?
A:Our technician installed the machine before shipping. For some small part installation, we will send a detailed training video and user's manual along with the machine. 95% of customers can learn by themselves.

Q: What can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will respond within 24 hours, as quickly as we can, to solve it for you.
Q: What customized services have you provided?
A:WEIKE CNC, we are the true manufacturer; we have our own factory, therefore we could supply full OEM and ODM services.
Q: Are WEIKE CNC machines user-friendly?
A:Yes, our machines are designed with user-friendliness in mind. They come with intuitive software interfaces that are easy to learn and operate. We also provide comprehensive training and technical support to ensure our customers can make the most out of their machines

Q:What after-sales support does WEIKE CNC provide?
A:We understand the importance of reliable after-sales support. We provide comprehensive technical support, including remote assistance, video tutorials, and access to our knowledgeable support team.

---
