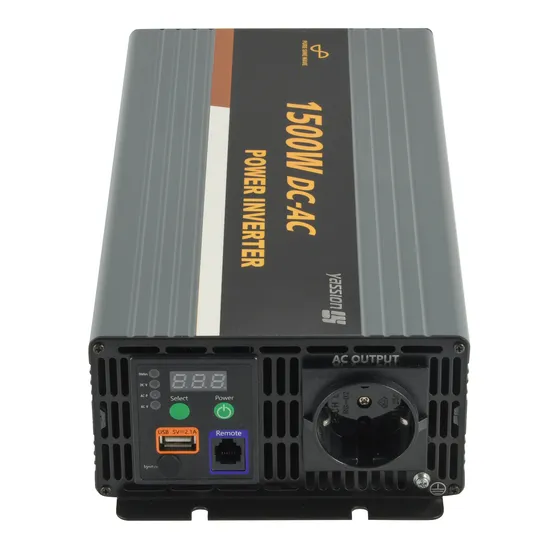

| Model: | YX-1.5KS-1-1 | YX-1.5KS-2-1 | YX-1.5KS-1-2 | YX-1.5KS-2-2 |
| Continuous Power: | 1500W |
| Peak Power: | 2900W |
| DC Voltage: | DC12V | DC24V | DC12V | DC24V |
| AC Voltage: | 100VAC or 110VAC or 120VAC ± 3V | 220VAC or 230VAC or 240VAC ± 3V |
| No Load Current Draws: | 1A | 0.5A | 1A | 0.5A |
| DC Voltage Range: | 10-15.5V | 20-31V | 10-15.5V | 20-31V |
| Low Voltage Alarm: | Lo0:10.5V | 11V±0.3V | Lo0:21V | 22V±0.3V | Lo0:10.5V | 11V±0.3V | Lo0:21V | 22V±0.3V |
| Lo1:10.8V | 11.3V±0.3V | Lo1:21.6V | 22.6V±0.3V | Lo1:10.8V | 11.3V±0.3V | Lo1:21.6V | 22.6V±0.3V |
| Lo2:11.3V | 11.8V±0.3V | Lo2:22.6V | 23.6V±0.3V | Lo2:11.3V | 11.8V±0.3V | Lo2:22.6V | 23.6V±0.3V |
| Low Voltage Shut Down: | Lo0:10.5V | 10.5V±0.3V | Lo0:21V | 21V±0.3V | Lo0:10.5V | 10.5V±0.3V | Lo0:21V | 21V±0.3V |
| Lo1:10.8V | 10.8V±0.3V | Lo1:21.6V | 21.6V±0.3V | Lo1:10.8V | 10.8V±0.3V | Lo1:21.6V | 21.6V±0.3V |
| Lo2:11.3V | 11.3V±0.3V | Lo2:22.6V | 22.6V±0.3V | Lo2:11.3V | 11.3V±0.3V | Lo2:22.6V | 22.6V±0.3V |
| Low Voltage Alarm Recovery: | Lo0:10.5V | 11.3V±0.3V | Lo0:21V | 22.6V±0.3V | Lo0:10.5V | 11.3V±0.3V | Lo0:21V | 22.6V±0.3V |
| Lo1:10.8V | 11.6V±0.3V | Lo1:21.6V | 23.2V±0.3V | Lo1:10.8V | 11.6V±0.3V | Lo1:21.6V | 23.2V±0.3V |
| Lo2:11.3V | 12.1V±0.3V | Lo2:22.6V | 24.2V±0.3V | Lo2:11.3V | 12.1V±0.3V | Lo2:22.6V | 24.2V±0.3V |
| Low Voltage Protection Recovery: | Lo0:10.5V | 12V±0.3V | Lo0:21V | 24V±0.3V | Lo0:10.5V | 12V±0.3V | Lo0:21V | 24V±0.3V |
| Lo1:10.8V | 12.3V±0.3V | Lo1:21.6V | 24.6V±0.3V | Lo1:10.8V | 12.3V±0.3V | Lo1:21.6V | 24.6V±0.3V |
| Lo2:11.3V | 12.8V±0.3V | Lo2:22.6V | 25.6V±0.3V | Lo2:11.3V | 12.8V±0.3V | Lo2:22.6V | 25.6V±0.3V |
| Over Voltage Shut Down: | 15.7V±0.3V | 31.5V±0.3V | 15.7V±0.3V | 31.5V±0.3V |
| Over Voltage Recovery: | 15.3V±0.3V | 30.6V±0.3V | 15.3V±0.3V | 30.6V±0.3V |
| Frequency: | 50HZ ± 0.5HZ or 60HZ ± 0.5HZ |
| Output Waveform: | Pure Sine Wave |
| AC Regulation: | THD<3% (Linear load) |
| Output Efficiency: | Up to 90% |
| Remote Control (Optional): | Cable length: 15m is available. |
| Power-Saving mode: | The power saving mode will be activated when the output power is less than 5W. When output power is more than 10W, the inverter will automatically return to normal status. |
| Ignition Function: | Connect vehicles battery (or connect positive pole of vehicles' STARTER). The inverters start simultaneously When the vehicles start; The inverters will shut down meantime when the vehicles shut down. |
| Protection Function: | Low voltage alarm | code: F05 | Buzzer sounds and fault light turns red |
| Low voltage shutdown | code: F01 | Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.) |
| Over input voltage protection | code: F02 | Recover by hand after the inverter shutdown. (the inverter will auto recover when the battery voltage go back to a normal level within 20ms.) |
| Over load alarm | code: F06 | Buzzer sounds and fault light turns red when output power is overloaded around 110%. But the BUZZ and F06 code will not occured when the output power drop to a normal level within 20ms. |
| Over load protection | code: F03 | The inverter shutdown when output power is overloaded around 120%, it need to be recovered by hand. |
| Over temperature alarm | code: F07 | Buzzer sounds and fault light turns red when the inverter's internal temperature is higher than the limit value (90±5ºC). |
| Over temperature protection | code: F04 | The inverter will automatically return to normal status when the internal temperature drops to 80±5ºC. |
| Short circuit protection | code: F03 | Recover by hand |
| Reverse polarity protection | | Built-in fuse |
| AC input overload protection | code: F09 | The fan will start to work when the relay temperature is up to 60±5ºC; but it will stop to work when the relay temperature drops to 50±5ºC. The unit will alarm, and no AC output when relay temperature is up to 75±5ºC; But it will auto recover when the relay temperature drops to normal value. |
| Fuse: | Internal | USB port | 5V, 2.1A |
| Working Temperature: | -10°C--+50°C | Product Size | 330×150×78mm |
| Storage Temperature: | -30°C--+70°C | Packing Size | 40.5×22×13.5cm |
| Warranty: | 18 months | N.W. / G.W. (KG) | 2.6KG/3.2KG |
| Start: | Bipolar soft-start | Quantity / Carton | 6pcs |
| Cooling Way: | Intelligent cooling fan | Carton Size | 45×42×43cm |
| Certification: | CE, E-mark, FCC | Carton Weight | 20.0KG |
