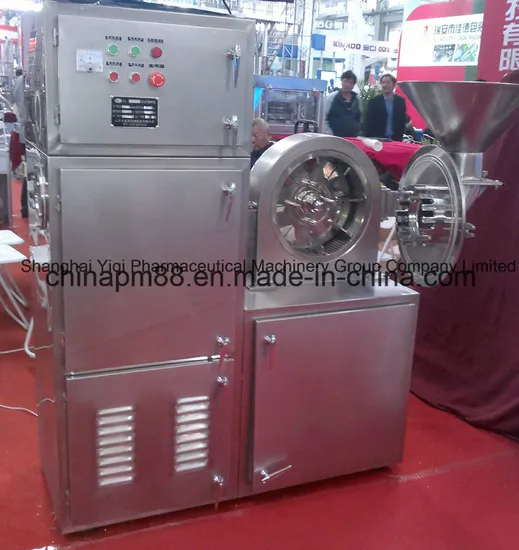

Air Cooled Crusher Spices Grinder/Shredder (FL-350)

Product Description

It is mainly suitable for pharmaceutical, chemical, food (example: ginger, chili, pepper, naked oats, beans, star anise, cinnamon, white sugar, crystal materials) crushing processing, low and medium hardness materials such as fineness regulation between 10-120 mesh, with high capacity, fine granularity, low noise, low energy consumption, easy maintenance and convenient installation, especially suitable for oily, viscosity, heat sensitive, fibrous low hardness materials etc.

Features
(1) The crushing chamber is equipped with the wind wheel type high-speed rotating cutter, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.
(2) It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
3. Working Method
(1) The machine uses the wind wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen.
(2) different sizes of granules will be got by changing screens.

Model	FL-250	FL-350	FL-600	FL-800
Capacity(kg/h)	30-300	40-800	500-1200	600-2000
Size of input granules(mm)	5	5	5	5
Size of output granules(mesh)	30-120	30-120	30-120	30-120
Motor power(kw)	5.5	11	22	37
Speed of principal axis(r/min)	4200	3800	2900	2500
Weight(kg)	285	350	650	1050
Overall size(L*W*H)	550*420*1400	770*750*1500	1200*1000*2250	1650*1300*2350

Air cooling pulverizer with dust collection system

welcome to check with us for any informatiom and specs of pulverizers for grains and spices.

---
