High Precision Hot Sale CNC Turning Lathe CNC Flat Bed Automatic Lathe Machine with Software

Product Description

High Precision Hot Sale CNC Turning Lathe CNC Flat Bed Automatic Lathe Machine with Software
Product Description
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.

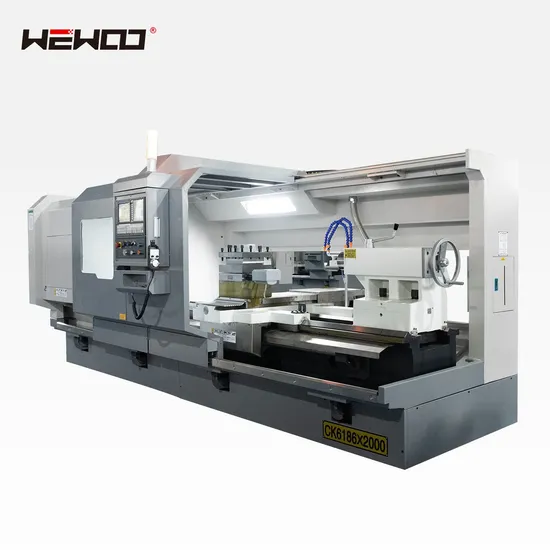

CK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
Product application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
The main performance characteristics:
CNC lathe features
1. A high strength ,widening the carriage ,suitable for heavy cutting
2. Four position electric turret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck
Product main technical specifications:

ITEM	Unit	CK6160/6163	CK6180/6186
Max.turning diameter of bed	mm	630	860
Max.rotation diameter of tool	mm	320	540
Width of bed guide rail	mm	550(split-type)	600(Integrated)
X/Z direction fast moving speed	mm/min mm	6000/8000	6000/8000
Min.feedind rementin X/Z direction		0.001/0.001
Max.workpiece length	mm	850/1350/1850/2850/3850/4850
Max. turning length	mm	1000/1500/2000/3000/4000/5000
Spindle end code		A2-11
Chuck (manual)	mm	400(Three-jaw)/630(Single-acting three-jaw)
Diameter of spindle through hole	mm	105(optional 130)
Spindle front end conical hole		1:20/120
Spindle speed series		Manual fourth gear(Optional hydraulic fourth gear)
Diameter of tail stock sleeve	mm	100 130
Max.stroke of tail stock sleeve	mm	250(Standard configuration)
Tail stock sleeve taper hole		Mos No.6
Spindle speed	rpm/min	30-80/53-150/125-350/300-835
Tool holder form		Vertical four-stationor six-station
Main motor power	KW	15(Frequency conversion)
Weight (processing length 1500mm)	KG	4200	5200
Size(L×W×H)	mm	3800×2200×2200 4000×2200×2200

Product standard configuration:

No.	Specifications	Number	Standard configuration
1	Numerical control system	1/set	Wide GSK980/ servo (optional)
2	Chuck	1/set	Manual three jaw chuck K11 250
3	Tailstock	1/set	Manual tail base
4	X -ball screw	1/set	PRC
5	Z -ball screw	1/set	PRC
6	Electric turret	1/set	LD4B-A(6150)
7	X,Z-Lead screw bearing	1/set	PRC
8	X,Z- Coupling	1/set	PRC
9	Spindle bearing	1/set	PRC
10	Fuselage Casting	1/set	High quality resin sand casting
11	Spindle assembly	1/set	Assembly spindle
12	Spindle clamping		Manual chuck
13	Paint	1/set	Color can be configured according to customer requirements, not special requirements according to our standard color configuration
14	Lubrication	1/set	Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)

Detailed Photos
PRECISION CHUCK
Standard with Manual chuck,Optional:hydraulic chuck or pneumatic chuck.
TOOL POST/TURRET
Standard with 4 staion electrictool
post ,6/8 station electric turret is optional.
QUENCHINGMACHINE GUIDE
Super audio quenching guiderail harder;400mm bed width.

SPINDLE
52/80/103 spindle hole,manual 3gears speed ,suitable for powercutting;
independent spindle is optional
TAILSTOCK
Standard with manual tailstock, Optional:Hydraulic or pneumatic type tailstock.
CNC CONTROLSYSTEM
Standard :GSK ,
Optional :Siemens,Fanuc,Syntec, Mitsubishi and others.

Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
