Pet Bottle Crushing Washing Drying Recycling Line / Plastic Bottle Recycling Machine

Product Description

PET bottle flakes crushing washing drying production line
Product Description
PET bottle flake recycling and washing equipment, automatic production line, is specially used for crushing and washing waste water bottles and other PET plastic equipment. This machine is a new generation of high-efficiency, water-saving equipment developed after repeated trials by our scientific research department. The features of this machine: exquisite appearance, low energy consumption, practical and reliable output. The new rinsing device can be washed as it breaks, which greatly improves the production efficiency, and the washing material is clean, the output of the equipment is 500-3000kg/h.

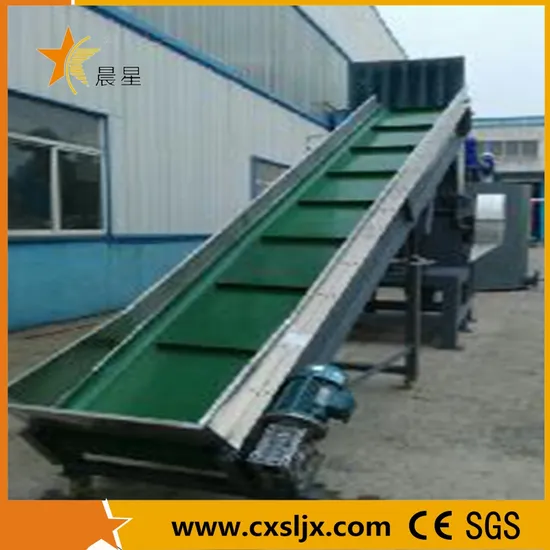

PET bottle recycling and cleaning equipment mainly consists of: belt conveyor, decalcifier screw feeder, crusher, friction cleaning, rinsing tank, hot cleaning steamer, dewatering machine, label separator, silo, control electric box, etc.

Main Features
1. PET bottle flakes crushing washing and drying
2. capacity various: 500-3000KGS/H
3. label stripper for optional
4. following machines for suggestion, such as PET strap production line or pelletizing production line, etc.
Product Parameters
1.1. Material and final products:

raw material	PET bottles and flakes
Capacity	500kg/h
final products describe	1.Max. moisture content:3-5% 2.Packing density:0.3G/CM3 3.Finished product size:18-22mm

1.2. Workshop:

Workshop	size(M*M*M): 50(L)×15(W)×5(H); Crane: equipment displacement (customers)
Power	380V/50HZ,3Phases
Wires and cables (customer supplied)	Cabinet-connection to the power supply, all devices and connections between the electrical cabinets
Water supply (customer supplied)	Equipment supply

1.3. Energy consumption

Total installed power	146KW (Actual consumption for the total power 70%-80%)
Water flow	10-12t(can be recycling use) pressure: 0.6Mpa
Supply heat	Temp.: 170 ºC, Pressure output flow: 0.7Mpa
People	3-6person

1.4 Main business item:

Project	PET bottles recycling line
Terms of payment	30% T/T as the prepay, the rest should be paid before delivery time.
Delivery time	About 50-60 working days after receiving the deposit
Warranty	1year

Detailed Photos

Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.

---
