Manual Lathe Universal Horizontal Heavy Duty Lathe Machine Price with CE

Product Description

Product Description
This series conventional heavy-duty horizontal lathe, it suitable for high speed steel hard alloy cutting tool, various materials shaft parts, cylindrical and disk-shaped parts processing. To achieve turning cylindrical, face grooving, cutting slot, cutting off, boring and turning inside and outside the cone and other processes.

used heavy duty lathe machine main transmission for DC motor drive, the spindle speed is stepless speed regulation. So in the processing of different step and the work piece, it can obtain the reasonable cutting speed.
used heavy duty lathe machine feed system for the separation of transmission, use of SCR infinitely variable speed, wide variable speed range, under different processing conditions, it is able to choose the most reasonable feed amount, Machine tool guide ways after the processing of high frequency quenching and grinding process, it can improve the surface hardness and precision of machine tool, also have long service life.

1.Bed using high-grade quality gray cast iron is made by resin sand molding, and use the sealing sand structure, guide using three rectangular flat guide rail, using high frequency quenching and grinding technology. Bed upper width is 1600mm. Chip using the bottom chip mode.

2.Spindle supported by two points, bearings with a precision spindle bearings, transmission gear after high-frequency quenching and grinding process for processing, and the tooth top edge trimming technology, spindle box using the powerful oil for lubrication, the front spindle using reliable maze of closed institutions, can effectively prevent oil spills and foreign objects into the headstock.

3.The main transmission system by the DC motor-driven spindle rotation, between the main motor and transmission mechanism, connected by flexible coupling, it has good mechanical properties.

4.The tailstock consists of upper body and lower body. On the upper body is equipped with a tailstock spindle and the spindle centerline adjustment mechanism. Under the body is equipped with a tailstock fast moving mechanism and the locking mechanism. Tailstock sleeve adopts built-in top structure; sleeve quick shift and the tailstock sleeve fast moving mechanism are driven by separate motor drive.

5.Turret using the pressure plate holder is divided into three parts, by the large carriage, cross slide and the top knife block, with high strength, high rigidity and other characteristics, suitable for heavy cutting.

6.Extension unit rail paste tin zinc copper plate method, the apron and the saddle tool carrier linkage, motor vehicles to cut any cone.

7.Feed box for two axis sliding structure, can achieve the transformation of the various feed.

8.The hydraulic system used to control the hydraulic cylinders, realize the spindle box gear automatic shift and forced lubrication, the system works reliable, convenient maintenance.
Product Parameters

Model		C61160	C61200	C61250	C61315
Max.swing over bed	mm	1600	2000	2500	3150
Max.swing over carriage/tool post	mm	1200	1600	2000	2600
Width of bed (Three lathe beds)	mm	1600	1600	1600/2100	2100
Max.length of workpiece	m	5-20	5-20	5-20	5-20
Max.weight of workpiece	ton	32	32	32/75	75
Max.torque of face plate	kg.m	8000	8000	8000	8000
Max.cutting capacity tool post	kg.m	8000	8000	8000	8000
Section dimension of tool shank	mm	70x70	70x70	70x70	70x70
Headstock
Progression of spindle speed		Stepless	Stepless	Stepless	Stepless
Range of spindle speed	rpm	1~200 0.8-160 0.025-125	1~200 0.8-160 0.025-125	1~200 0.8-160 0.025-125	1~200 0.8-160 0.025-125
Diameter of chuck	mm	1600	2000	2500	3150
Knife rest
Step. No of feed	step	18	18	18	18
Range of longitudinal feed	mm/r	0.125-48	0.125-48	0.125-48	0.125-48
Range of cross feed	mm/r	0.063-24	0.063-24	0.063-24	0.063-24
Feed range of tool slide compound	mm/r	0.063-24	0.063-24	0.063-24	0.063-24
Longitudinal rapid traverse speed	mm/min	3000	3000	3000	3000
Cross rapid traverse speed	mm/min	1500	1500	1500	1500
Max.travel of cross slide	mm	670	800	1000	1250
Metric thread (thread pitch)	mm	2-40	2-40	2-40	2-40
Inch thread	mm	1-14	1-14	1-14	1-14
Module thread	mm	1.5-20	1.5-20	1.5-20	1.5-20
Tailstock
Traversing capacity of sleeve	mm	200	200	300	300
Rapid traverse of tailstock	mm/min	3000	3000	3000	3000
Rapid traverse of sleeve	mm/min	664	664	664	664
Power
Main motor power	kw	75	75	90	118

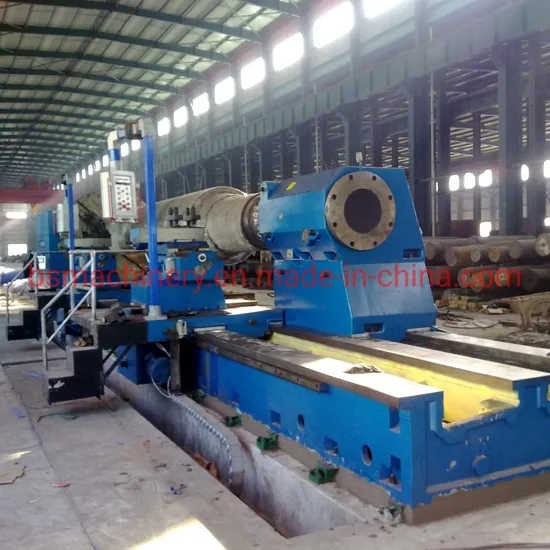

Detailed Photos
Processed Workpiece Display
Welcome inquiry.

---
