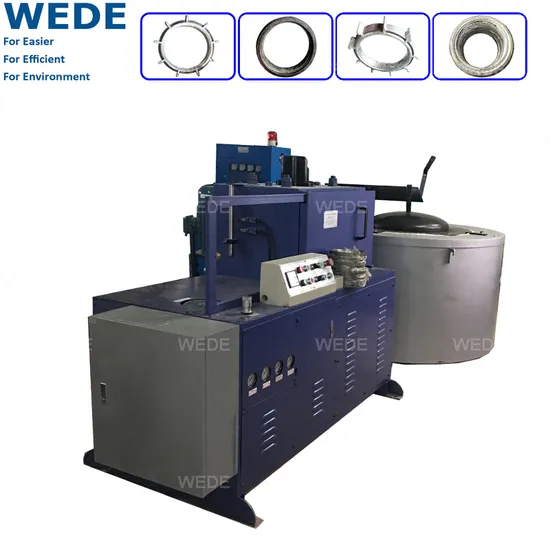

Centrifugual Force Ceiling Fan Rotor Casting Machine with Electric Furnace

US$20,000.00-24,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WD-1-ZL181
Type
Cold Chamber Die Casting Machine
Structure
Vertical
Die Casting Machine Type
Cold Chamber Die Casting Machine
Material
Aluminum
Surface Preparation
Baking Paint
Pressure Chamber Structure
Vertical
Tolerance Grade
5
Casting Surface Quality Level
3
Die Casting Method
Centrifigual Force
Application
Ceiling Fan Rotor
Machining
Aluminum Casting
Stations No.
1
Cycle Time
6-15 Seconds/Piece
Transport Package
Ply-Wooden Case
Specification
9.5 Ton
Trademark
WEDE
Origin
Guangzhou, China
HS Code
8454309000
Production Capacity
60PCS/Year

Product Description

rotor casting machine WD-1-ZL181 is specially designed for
aluminum rotor casting of ceiling fan
Feature:
Centrifigual force casting
1 working stations;
Save investment cost
Less space occupy
Specification:
Compsition pressure

Oil pump Die lock pressure(Max) 2.5Ton
Model PV2R1-17L(big shaft) Die open pressure(Max) 7Ton

Clutch motor oil pump motor
Model YE2-132M-4(vertical) Model YX3-100L2-4
Voltage 380/415V,50Hz Voltage 380/415V,50Hz
Power 7.5KW Power 3KW

Spare parts with the machine delivery
star H/S belt SPB1400 clutch slip brake pad oil seal water cooling seal

Main parts
water cooling seat+bush clutch
limit switch and digital timer

Ceiling fan stator coils production line,
