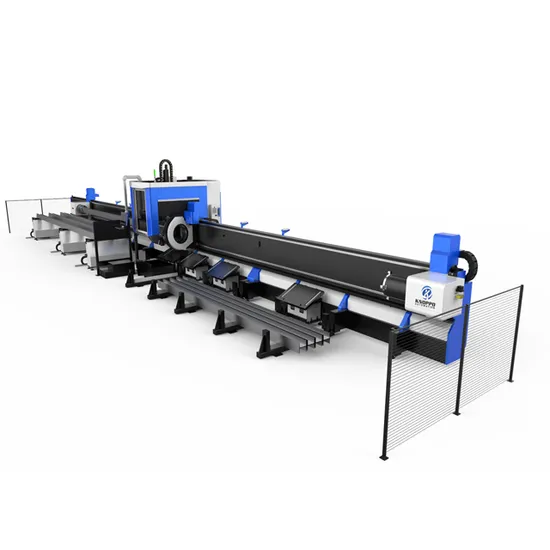

H Beam Steel Pipe Cutting Tube Cutter Stainless Steel Metal Tubes Fiber Laser Cutting Machine for Metal Profiles

Product Description

KNOPPO FIBER LASER CUTTING MACHINE , 3 YEARS WARRANTY
Product Description
The equipment meets the parts processing requirements of most industries, working accuracy is stable. Selecting the optimal force and supporting structure, the overall mechanical property of equipment is perfect. Adopting cutting-edge optical concept to improve cutting performance. High speed cutting, auxiliary loading and unloading and efficient production reduce labor costs. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.

Model		KT6
Laser Power		1000W/1500W/2000W/3000W/4000W/6000W/12KW/20KW
Laser Source		Raycus / Max
Tube Cutting Length		12m / 6m
Tube Cutting Diameter		20~240mm / 320mm /520mm
Machine overall dimensions		13500×3200×2500mm
Machine weight		5400kg
Max. linkage speed		140m/min
Max. acceleration		1.5G
Positioning accuracy		0.03mm
Repositioning accuracy		0.02mm

Detailed Photos
Switzerland Raytools Auto Focus Laser Head

Modular design with easy maintenance.
Dual water cooling circuits.
Auto focus to reduce human intervention and improve piercing and cutting efficiency.
3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
Japan YASKAWA Servo Motor And Driver
1. Adopting Japan Yaskawa serco motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
Taiwan HIWIN Rail And YYC Rack
High positional accuracy, long life with high motion accuracy, High speed motion is possible with a low driving force, equal loading capacity in all directions, easy installation, easy lubrication, interchangeability.
Automatic Rotary And Chuck
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Max Laser Source
Max Laser Source is NO.1 brand in China , good quality and 3 years warranty .Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Samples

Packaging & Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Profile
Yvchuang Laser is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15, 000 laser cutting systems in the market and a rapidly increasing global base, Yvchuang laser is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age. The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine, laser marking machine etc. With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.

---
