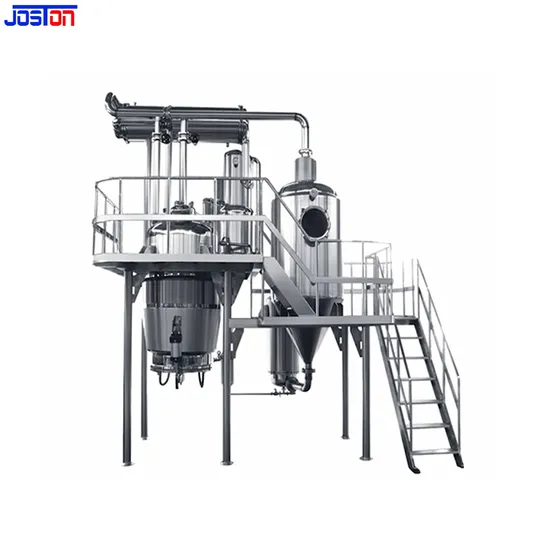

Lavender Peppermint Essential Oil Thermal Reflux Extaractor Concentrator

Product Description

Product Description Simple operation steps of equipment
1.after finished installation as our engineer suggestion and operation manual.
2.Checking the utilities of all the system like steam generator ,cooling water ,chiller ,compressor air etc in the working status.
3.close the bottom discharge gate by pneumatic cylinder ..
4.load the raw material into the extraction tank via top end manhole as the production process requirement.
5..charge the water or solvent solution into the tank as the production process requirement.
7.open the cooling water system and chiller system ( if it is necessary ) to make the cooling unit recycle.
8.start heating ( can use the steam or electrical )
9. for the water or solvent based extractor process , finished extracting process ,can discharge the extraction solution to the storage tank .if for the essential oil distill ,can adjust the the oil/water separator valve to make the oil and water separator to collect the essential oil product .
10. open the bottom discharge gate to make residue material discharge and change new batch raw material .
11.finished production ,stop heating system ,then cooling system .
12.use the hot water or CIP solution to clean inside shell of extraction tank by CIP spray ball .
Detailed Photos
Technical description

Model item	TQNS500	TQNS1000	TQNS2000	TQNS3000	TQNS6000
Extraction tank work volume (L)	500	1000	2000	3000	6000
Extraction solution storage tank (L)	1000	2000	4000	5000	10000
Concentrator machine evaporator capacity (L/H)	200	500	1000	1500	2000
Vacuum scraper concentrator (L)	200	300	300	500	500
Solvent mixing tank (optional ) (L)	500	1000	2000	3000	5000
Solvent recovery tower (optional )	JH200	JH300	JH400	JH500	JH800
Steam inlet pressure (MPa)	0.2
Cooling water temperature (ºC)	25/35
Chiller temperature (ºC)	7/12
Compressor air pressure (MPa)	0.6-0.7

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.

6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.

---
