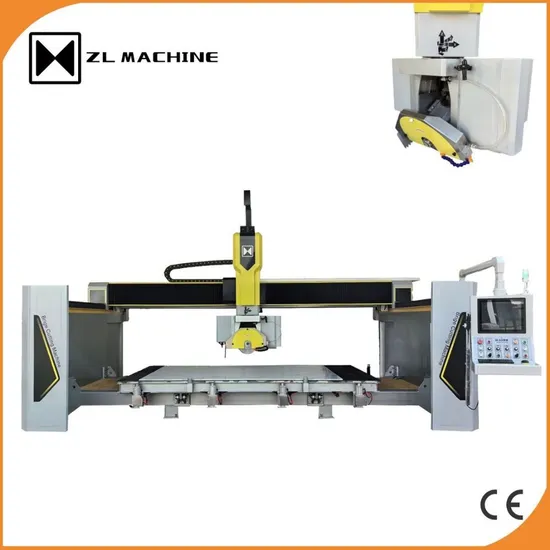

Automatic Smart Monoblock 4 Axis/5 Axis CNC Bridge Saw for Cutting Granite, Quartz, Marble Countertops, Vanity Tops, Staircases Factory Price for Sale

Product Description

Product Parameters

Model	4 Axis CNC bridge saw	5 Axis CNC bridge saw	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Worktable Material	PVC+ Rubber	PVC+ Rubber
Maximum cutting	L3500*W2000*H120	L3500*W2000*H120	mm
Maximum chamfering	L3500*W2000*H80	L3500*W2000*H80	mm
Blade diameter	350-500mm	350-500mm	mm
Main motor power	15	22(permanet magnet motor with frequency)	kw
Router power	5.5	5.5	kw
Control center	industry computer with "Cut Cam" CNC System	industry computer with "Cut Cam" CNC System
Driving motor	Servo motor	Servo motor
Router max speed	24000	24000	RPM
Total power	25	32	kw
Suction cup lifting weight	200	200	kg
Head rotate	0°-360°	0°-360°
Head tilt	0°and 45°	0°-90°
Cylinders	5	5	group
Dimensions	L5750*W4150*H3500	L5750*W4150*H3500	mm
Water consumption	2	2	m³/h
Total weight	5	5	t
Main part delivered size	5750x2200x2500	5750x2200x2500	mm
Machine delivered method	Main part delivered as whole(HQ container)	Main part delivered as whole(HQ container)

Option: (System) 1. "Cut Cam"CNC System 2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Product Description
For processing Marble, Granite, Porcelain, Quartz Stone, Sintered Stone Countertops, we provide 4 Axis/5 Axis CNC Bridge Saw of the ZLBS-500CNC/(4+1) A type and the ZLBS-500CNC/(5+1) A type.
They are precise, effective, and user-friendly machines.Put the stone slab on the worktable, take a photo for it by the Camera of the machine, and then use Computer to place your layout drawing on the stone in the picture, then start, the machine will generate processing steps automatically.Saw blades, Milling cutters, Suction Cups, and Pressure Plate Cylinders will start working. Therefore, the machine is used to help install countertops without any dust.
We also provide OEM/ODM production machine service.

Functions:
* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals...
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin
*Vein matching: match vein and seam of your slabs with ease.

Product Features
1. Electric spindle with 24000rpm
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3.
(5+1 Axis Bridge Saw):Working Head can Tilt 0~90 degree and Rotate 0~360 degree.
(4+1 Axis Bridge Saw):Working Head can Tilt 0 and 45 degree and Rotate 0~360 degree.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
5. With Auto Clamping System

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
6. Suction Cup is equipped
The machine has Suction Cup to move slabs automatically.If the blade-cutting path conflicts, the suction cup can help.
7. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.
8. Touch-Screen Industrial Computer
This Machine has an industrial computer and a touch-screen.
9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
11. 22-KW Permanent Magnet Motor
The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.

Application Pictures


Packaging & Shipping

Company Profile

Certifications
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.

---
