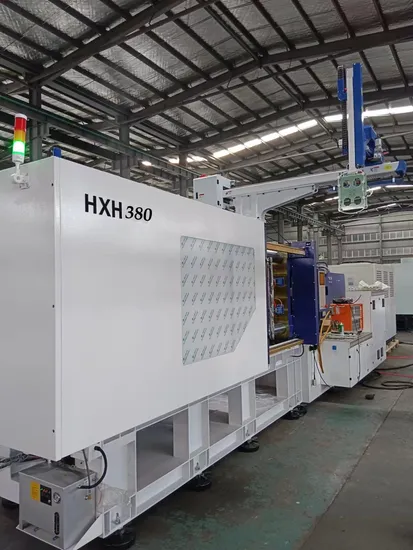

Highsun Plastic Injection Molding Machine Hxh380 Special Production Machine for Picnic Knife, Fork and Spoon

Product Description

TECHNICAL PARAMETER TABLE		A	B
Screw diameter	mm	55	60
Screw L/D ratio	L/D	24	22
Injection capacity in theory	cm3	582	692
Injection weight (Ps)	g	529	630
Injection pressure	MPa	171	144
Injection speed	mm/s	480
Plasticizing Capacity	g/s	80	97
Screw speed	r/min	400
Clamping force	kN	3800
Opening stroke	mm	630
Max mold height	mm	650
Min mould height	mm	250
Space between tie-bar	mm	710*660
Ejector force	kN	125
Ejector stroke	mm	180
Ejector No	n	13
Pump pressure	MPa	19
Motor power	KW	45+45
Heating power	KW	20.3
Machine dimension	m	6.98*1.81*2.04
Machine weight	t	14
Oil tank capacity	L	800

HIGHSUN thin-wall high speed IMM series is based on years of experiment and researching,specifically for the molding cycle is short,high speed injection molding requirement products,Outstanding performance in the aspects of motion characteristics,machine precision,sevice life and so on.Widely used in packaging,medical and 3C electronic products.
Product advantages:
1.With CANbus EtherCAT bus communication,the compuer sustem is full digital controlled.
2.The temmperature contral adopts special control module,The accuracy can achieve 1 degree.
3.With the power monitoring function,it can monitor the current energy consumption during the production.
4.The special single cylinder strcture drastically reduces the return-oil amount during the high speed injection.At the same time,it reduces the return-oil pressure,In this way,it increases machine injectuib acceleration.
5.In using the graphite steel sets as well as thin oil lubrication,the bent elbow connecting rods and guide bars have better bearing resistance and abrasive resistance,The machine has a longer service life.
6.Controlled by the proportional direction valve,The movement can accelerate quickly.During the high speed running,it can operate steadity and precisely control the mold open position.
7.The hydraulic system adopts double servo drive control.It has the advantages of high effciency,energy saving and low noise.Meanwhile,it can realize mold-open and charge sunchronization function.

---
