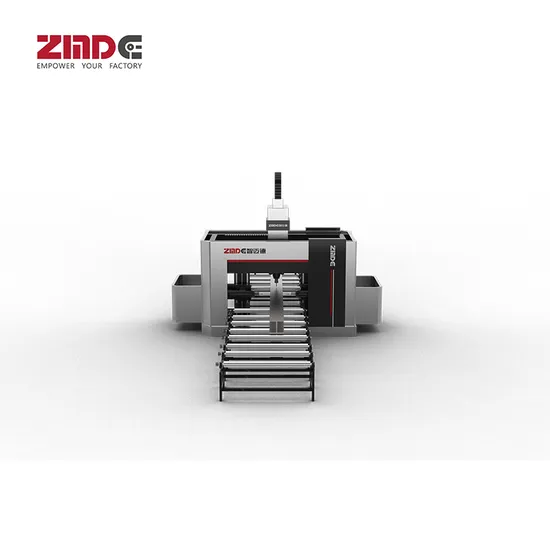

Zmde CNC Steel Plate Processing Machine CNC 3D H Beam Drilling Machine Used for Steel Structure

Product Description

ZMDE CNC Steel Plate Processing Machine CNC 3D H Beam Drilling Machine Used for Steel Structure

Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

This advanced machine drills precise holes on three sides of H-beam steel simultaneously, featuring 7 CNC axes and a CAD/CAM directly generated processing program. It accommodates a maximum H-beam section size of 1000×500mm and a maximum drilling diameter of 33.5mm. Its sophisticated control system includes a computer numerical control system, AC servo system, photoelectric encoder, PLC, and more. Simply input the workpiece size to automatically generate and store machining programs, which can be recalled, displayed, and processed anytime by part number.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Established in 2013, ZMDE Co., Ltd. is a high-tech enterprise specializing in the research, development, manufacturing, sales, and service of assembly building intelligent equipment. Recognized as a national specialization, speciality, and new 'small giants' enterprise, ZMDE's core industries encompass steel structure assembly building intelligent industrial mother machines and industry IoT andintelligent control systems.
Headquartered in Lingang New Area, Pudong New District, Shanghai, ZMDE's base spans 32,000 square meters and includes the Research Institute of Artificial Intelligence for Assembled Buildings. This facility is the hub for the company's management and the development of high-end core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
The Shandong base in Weicheng District, Weifang City, focuses on researching, developing, and producing intelligent industrial mother machines for steel beams of assembled buildings, as well as intelligent industrialmother machines for walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients. 2. Q: Could you specify the payment terms you accept? A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer). 3. Q: What is the typical delivery time for your orders? A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently. 4. Q: What is the duration of your warranty period? A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits. 5. Q: Do you offer ODM/OEM services? A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.

---
