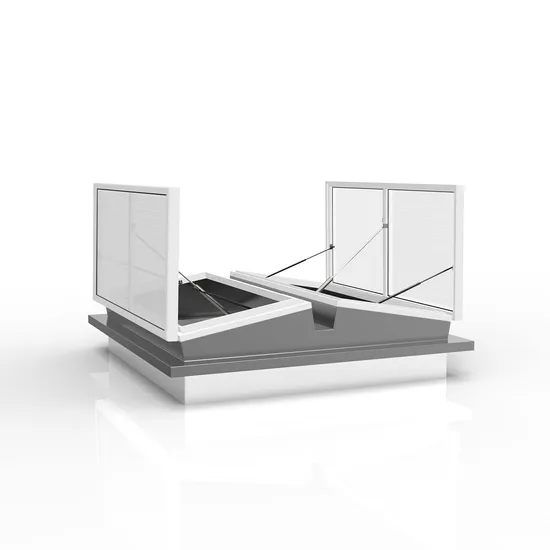

Toprise Skylight Smoke Ventilation Natural Smoke Vent

Product Description

TOPRISE Natural skylight smoke ventilation can be linked with fire fighting system. It can open to exhaust
heat and smoke automatically within 30s after receiving the fire signal.
* Window Frame: Thermal break and heat insulatedaluminum alloy profile+ aluminum alloy powder coated
outer cover. Skylight part is available in polycarbonate hollow sheet, tempered glass or aluminum alloy
insulation panel.
* Control system: 1) 24V safety voltage is used for electric opening. 2) two-wayscompressed air and carbon
dioxide emergency gas cylinder are used for pneumatic opening. It's equipped with fail-safe device.
* Customized size: 1m ≤ base width ≤ 2.3m, 1m ≤ base length ≤ 10m
Length can be customized.

TYPE	THROAT SIZE (W*L)MM	OUTLINE SIZE (W*L)MM	HEIGHT(MM)
TOPWY-1015	1000*1500	1256*1756	500
TOPWY-1020	1000*2000	1256*2256	500
TOPWY-1520	1500*2000	1756*2256	645
TOPWY-1530	1500*3000	1756*3256	645
TOPWY-2030	2000*3000	2256*3256	645

* Reducing wind pressure resistance and increase natural lighting. * Eliminating snow and water on surface, with better waterproof performance. * The outer cover is powder coated with beautiful appearance. * Structural waterproofing of frame profiles and integrated base. * It can realize remote monitoring. * K value: from 1.8 to 2.7 W m2/°K * Reliability: Re 1000 cycles (smoke exhaust) or Re 20000 cycles (daily ventilation) * Open within 60s * Snow load: 500Pa * Resistance to heat: 300ºC 30mins * Low ambient temperature: -25ºC * Structural waterproofing design
* The polycarbonate sheet is easy to replace for free maintenance.
Q: Could you customize the size? A: Yes, we can customize the size as per your requirement.Q: What's your MOQ?A: 10 units each size. Q: Could you recommend the model and quantity? A: Yes, we can design the model and quantity as per the warehouse dimension and warehouse type.
Q:How about the lead time?
A: Normally 2-3 weeks. It depends on the quantity and our production plan.

---
