Aluminum Plate Duct Auto Line 3 III

Product Description

FEATURES
Auto line III consists of a metal feeding frame. Levelling and grooving equipment ,noching and punching square equipment ,hydraulic cutter and folder. The electrical control system uses a computer with a closed-loop and servo-system to increase the precision and reliability of the manufacture line
The maxmum working speed is 16m/min. The length tolerance is +-0.3mm. The diagonal line tolerance is +-0.5mm.
BASIC EQUIPMENT
1.Motor-driven metal feeding frame
2.Levelling and grooving machine equipment
3.Four sets of hydraulic punching square notch dies
4.Hydraulic cutter and folder
5.Industrial computer and special software
FUNCTION
1.It can cut fixed sized metal,also can be used with a plasma cutting machine
2.a. Punch "C","S" inserted cleat notch ,which can be used together with "C"cleat and "S" inserted flange machines
b.Due to different connecting methods for notch cutting ,it can be used with TDF flange machine and TDF folding machines.
c. It's able to punch all kinds of notches which are used by angle iron flange or "Z" shape flange machine. It can fold """"and"" shape, and can be used with combined seaming machine to produce a complete set of duct .
3.it can punch TDC notch and fold metal for inserted flange, to produce "" shaped duct .for example, it can be used with both combined seaming machine and inserted flange to manufacture a complete set of duct.
WORKING SCHEMATIC DIAGRAM
MAIN TECHNICAL DATA

Model	Thickness range(mm)	width(mm)	working speed(m/min)	Power(kw)	Weight(kg)	Dimension(mm)
ADL-III	0.4-1.2	1300	18	8	3500	5000x2160x1450
	0.4-1.2	1600	18	8	4500	5000x2460x1450

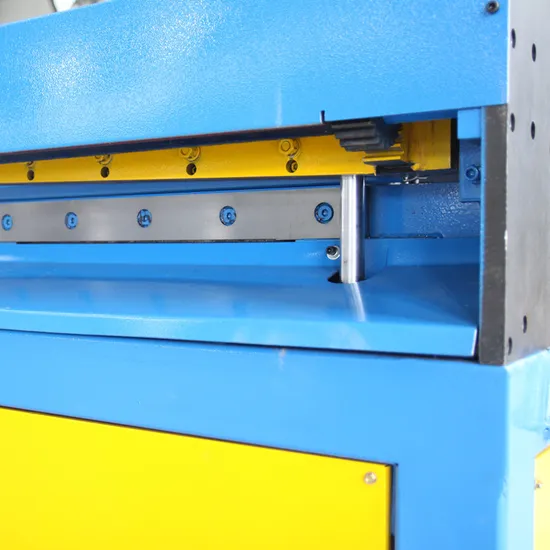

DETAILED PICTURES
VISIT AND TRAINING
GOOD PACKAGE AND SAFTY DELIVERY
FACTORY SHOW
FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.
2.Q:How about the quality of your machines?
A: Our company is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.
4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
