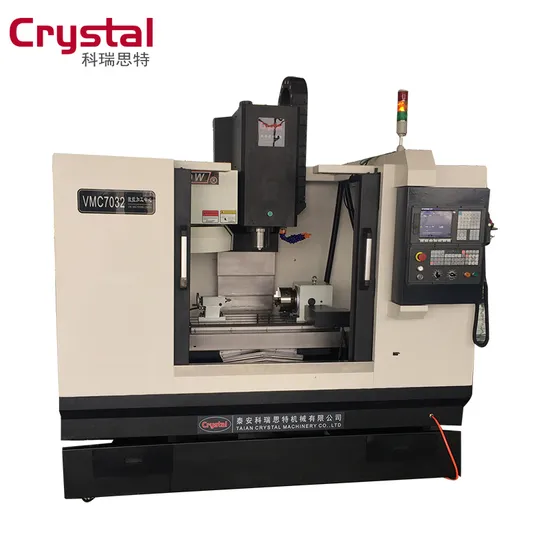

3 Axis CNC Metal Milling Machine Vmc7032 Mini CNC Milling Machine Price

US$22,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC7032
Structure
Dedicated
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Place of Origin
China
Machine Type
CNC Milling Machine
Processing Type
Metal
X,Y,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Warranty
One Year
Transport Package
Wooden Case
Specification
CE, SGS
Trademark
Crystal
Origin
China
HS Code
84581100
Production Capacity
25 Sets/Month

Product Description


This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping and boring etc.
VMC7032 Vertical Machining Center Features:
1.Taiwan BT40 Spindle
2.Taiwan ball screw and locking nut
3.Umbrella type tool Magazine, 12 tools
4.Fully-guarded type machine
VMC7032 Vertical Machining Center Specifications:
Specifications
 Unit
 VMC7032
Table Size (L*W)
 mm
 800×320
Travel of x,y,z axis
 mm
 610/320/400
Max, table load
 kg
 400
T-slot Size
 mm
 3-14-100
Center distance
 mm
 100
Spindle taper
 --
 BT40
Spindle center to Column guide distance
mm
 376
Spindle end face to table distance
 mm
 130-530
Max speed
 rpm
 8000
Spindle motor power
 KW
 3.7/5.5
Spindle drive
 --
 Belt transmission
Positioning accuracy
 mm
 0.015
Repeat Positioning accuracy
 mm
 0.0075
Rapid feed of X/Y/Z
 mm/min
 1000
Cutting feed of X/Y/Z
 mm/min
 6000
Tool Magazine Capacity
 tools
 12
Max. Tool size
 mm
 100
Max. Tool weight
 kg
 8
Machine Weight
 Kg
 3000
Dimension
 mm
 2280*1760*2200
Power
 --
 3 phase 380V,

VMC7032 Optional Configurations:
1. System: KND2000M, FANUC, Siemens etc.
2. Spindle speed: 10000rpm
3. Fourth axis with 125°dividing head
4. Fifth axis
5. 16 pieces arm type ATC
