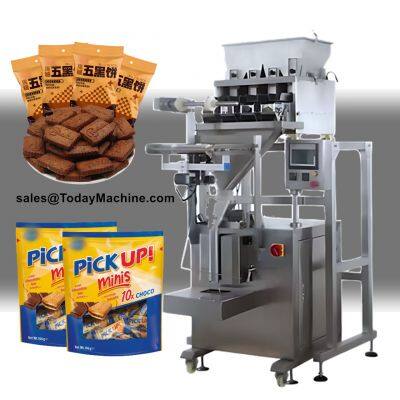

Packaging Machine with Multi Head Weigher
A form fill seal machine with a multi-head weigher is a packaging machine that is used to automatically package products by film roll. The machine uses a combination of a multi-head weigher and a form fill seal system to weigh and package the product in a sachet or pouch.
The multi-head weigher accurately measures the required amount of product and feeds it into the form fill seal system. The film roll is then formed into a tube shape and the product is filled into the pouch. The pouch is then sealed on both ends, creating a complete package.
weigher packing machine
Accurate weighing: The multi-head weigher is designed to provide consistent and accurate weighing of the product to ensure product quality and safety.
High-speed production: The machine can package several products simultaneously, increasing production speed and efficiency.
Compact design: Form fill seal machines with multi-head weighers have a compact design that saves space on the production floor.
INDUSTRIES AND APPLICATIONS
1.Food Industry: These machines are used for packaging products such as snacks, candies, nuts, dried fruits, coffee, and tea.
2.Pharmaceutical Industry: These machines are used for packaging products such as tablets, capsules, and other solid medicines.
3.Chemical Industry: These machines are used for packaging granules used in industrial processes.
TECHNICAL SPECIFICATION
Model
| Film width
(mm)
| Bag size
(mm)
| Speed
(pcs/min)
| Range
| Power
| Weight
(kg)
| Size
(mm)
|
VFFS-280-2H
| Max 320
| L:40-175/275
W:20-145
| 20-40
| 10-100g
10-300g
10-600g
| 2kw
| 300
| 1100x1000x1900
|
VFFS-280-4H
| Max 320
| L:40-175/275
W:20-145
| 40-70
| 10-100g
10-200g
| 2.3kw
| 390
| 1100x1000x1900
|
VFFS-450-2H
| Max 420
| L:50-275
W:60-195
| 10-30
| 10-300g
100-1000g
| 3.3kw
| 400
| 1200x1100x2000
|
VFFS-450-4H
| Max 420
| L:50-275
W:60-195
| 20-50
| 10-200g
100-1000g
| 3.5kw
| 420
| 1200x1100x2000
|
>>
