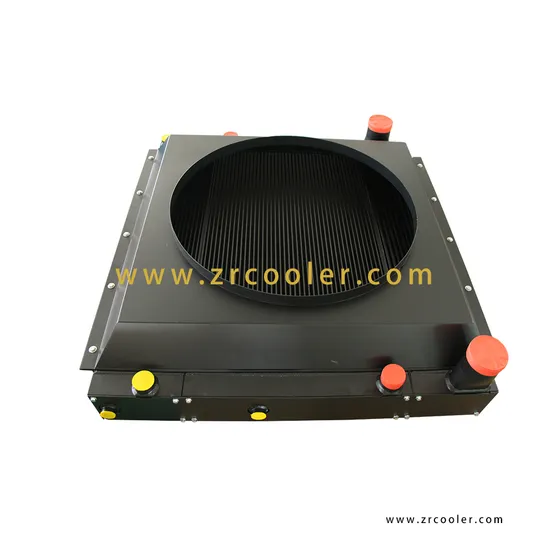

Plate Fin Type Heat Exchanger Hydraulic Oil Air Cooler for Hydraulic Station

Product Description

Product Description Oil cooler for hydraulic circuit of engineering machinery, suca as excavator, vibratile roller, carlifter and drill rig.
Structure: Plate-bar design
Material: Aluminum
Surface treatment: Painting or powder
Packing: Carton box and wooden pallet
ZRcooler product range covers:
Compressed air coolers and combined coolers
Oil coolers for hydraulic aggregates for car engines and gears
Air coolers and water coolers
Heat exchangers
Complete fan units for E-engines and hydraulic motors
Complete cooling-systems
ZRcooler have a special engineer team which can design special heat exchangers and radiators 100% customized upon request, if you have interest, please contact with us.
Manufacture process: Product Description
Basic Info.

Material
core	Tank	Nose bar	Air fin/turbulator/End plate	connections	Mounting Brackets
Brzed aluminum bar and plate	5052 aluminum	3003 aluminum	3003 aluminum	aluminum	aluminum

Product Description P-Bar design for high volume OE Mobile Applications
Structure: Air cooled "plate and bar" design(P-Bar design)
Incorporates radiator, hydraulic oil and charge air coolers into one package
Material: Aluminum alloy
Application: Construction Machinery, such as excavator, roller, bulldozer, paver, pulverizer, etc

Products Structure
Core Structure-Aluminum plate&bar(P-BAR)
Products Range:
·Customised oil air cooler for compressors
·Compressed air coolers and combined cooler for contruction machinery
·Oil coolers for hydraulic system and engines.
·Air coolers and radiators
·Complete fan units with DC/AC and hydraulic motors Cooling systems


Certifications

Manufacture Procsse
-Modules are pressure and leak tested, assembled and packaged
-prototypes and production products can be completed in a short lead time.
-production core geometries for radiators(water-air), oil coolers(oil-air), air coolers for engines(CAC). Air coolers for compressors(air-air), air-oil welded combos.
-P-Bar complete cooling packages can be equipped with fan, motor, finger guard, etc
Packaging & Shipping Installation Instructions Installation:
1.To ensure the cooling effect, adequate air suction distance shall be maintained with 1/2 of the fan dianeter as the minimum suction distance.
2.The two oil ports on the cooler can be used as the oil outlet or inlet according to the actua conditions. When installing the oil inlet and outlet pipe please tighten the screws on the cooler with proper tools to avoid damage to the cooler;
3.Applicable thread:PT(British),RC(Japan),ZG(China Standard) products of other specifications can be customized.
4. To connect the oil filter in series, it must be installed at the front stage of the cooler
5. Connect the electricity marked on the cooler to work. If it is DC or three-phase voltage, please confirm whether the wind direction is consistent with the wind direction (red arrow) marked on the cooler.
Company Profile Wuxi Zhengrui Heat Exchanger Co.,LTD is a special company which is engaged in design and manufacture for "aluminum plate-bar heat-exchanger". It is established by a group of special experts who have more than twenty years' industry design and manufacture experiences.
Zhengrui supply global standard coolers and customized coolers for many uses including industrial hydraulic, air compressor, on-road&off-road vehicles and construction machinery applications etc.
Now more than 50% ZR coolers are exported to all over the world, such as UK, Germany, USA, Canada, Australia, etc. We have long and stable cooperation with all the customers.
Zhengrui professional technical team and manufacture team will provide you with excellent coolers.

Company features: »Good business, technical communication » Years of industry design experience » Professional technical software support » Total cooling system solutions » Quality control » Professional teamwork » Delivery guarantee

Our Advantages R&D is always as the leading force in Zhengrui development.
Our R&D team provides:
·The new product design.
·Prototype built and validation.
·The technology design.
·Cooler design and production according to thermal data and drawing.
After Sales Service "ONE STOP"service is what we doing now.
Varied products catalogues and flexibility is our value. 1.Each product must be 100% tested before delivery
2.Provide the technical design and solutions of your products
3.Provide accessories for the products you buy at any time

---
