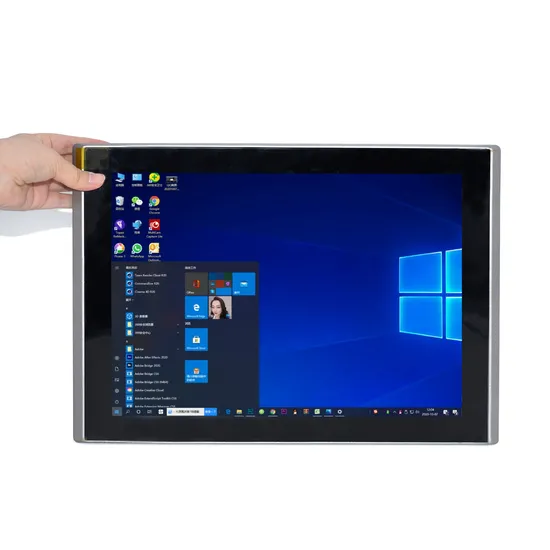

for Vending Machine 15′1inch Industrial Touch Screen Desktop Mini All in One Touch Panel PC

Product Description

VR Product Description Industrial tablet PCs are industrial control computers designed for industrial use, and their basic performance and compatibility are similar to those of commercial computers. However, industrial tablet PCs pay more attention to stability in different environments, and require stability in harsh environments, such as dustproof, waterproof, and anti-static. Hystou industrial tablet pc fully meets the above requirements.

Hystou Industrial Tablet PC highlights:
[Long Service Life] Hystou industrial panel computers have the characteristics of airtightness, low power consumption, and fanless, which can ensure that the failure and maintenance time is minimized and simplified, and the service cycle is maximized.
[Faster Running Speed] Equipped with Intel Core i5-8250U/Core i7-8550U/Celeron J1900, powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, Streaming video, Web Browsing, Gaming, and Work.
[High Degree of Protection] Hystou industrial tablet computers are mainly used in complex operating environments. They have three good protection functions, which are waterproof, dustproof and vibration-proof, and provide users with a high-level waterproof and dustproof front panel, and provide users with an IP65-level waterproof and dustproof front panel.

[Low Power Consumption] Hystou industrial tablet pc adopts the cooling system of LED screen and heat pipe, and the structural design of the industrial panel computer itself makes it have lower power consumption.
[Real-time Reflection of Production] In the application of industrial tablet computer, if there is a deviation or failure in the data monitored in the production process, the industrial tablet will respond and deal with it in time to prevent the loss caused by the failure in time.

[Fanless & Embedded Design] Hystou industrial tablet pc adopts fanless and embedded design, so there is no need to worry about connection problems. This design greatly improves the reliability of the machine and completely solves the problem of insufficient heat dissipation and life span of traditional industrial computers.

Details Images

Processor	Intel Celeron J1900/ Intel Core i5-4200U/Intel Core i7-4500U
Memory	Onboard DDR3L 4G memory
Storage	support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series)
Lan	2*GbE RJ45 Intel@i211-AT
	3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface
	2*DB9-RS232/422/485 COM
	2*3-wire RS232/485 COM phoenix terminal
	2*3-wire RS232 COM phoenix terminal
Interface Port	1* Audio line-out
	2*8Ω 1W Speak out(optional)
	1*phoenix terminal DC 9-36V Input
	1*AT/ATX Switch
	1*HD output
	1*14bit GPIO(Optional)
WIFI	1x full height Mini PCI-E,onboard SIM slot, support 3G/4G
Resolution	16.2M Color, 1280*800 ( 1280*600 optional)
Panel	TFT LCD (support 10.1" 12.1" 15.1" 17")
Backlight Hour	(LED )30,000
Brightness	400cd/m²
Visual	-85~85°(H) -85~85°(V)
Type	5 wire resistance type
Dimen	289.53*192.44*48.3MM(for 10.1")
Weight	NW: 2.7KG, GW: 4.5kg(10.1" weight, also support 12.1" 15")

Product Usage HYSTOU Panel PC Company Introduction Hystou is a professional manufacturer and exporter of desktop mini PC. OEM and ODM orders are welcomed. The more you purchase, the cheaper the price. Our company in Shenzhen Welcome to visit our factory! Workers are assembling mini pc. Packing&Shipping Packing List: Normally we use the carton box, 5 or 10pcs per carton 1 x Panel PC 1 x Power adapter(correct power plug based on buyer's country) 1 x VESA bracket(some model not support) 1 x Sata power cable and data cable.(some model just support one Msata) 1 x Warranty card & user manual FAQ

---
