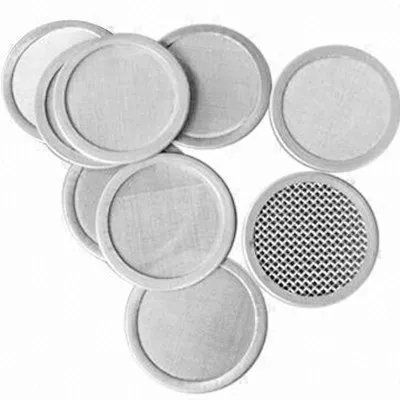

Stainless Steel 25 Mesh 200 Mesh Filter Disc

Product Description

Stainless Steel 25 Mesh 200 Mesh Filter Disc
Material: SUS302, 304, 316, 304L, 316L stainless steel iron wire, Copper wire and black wire cloth Woven type: Plain weave, twilled weave, dutch weave Wire diameter: 0.025mm-3.4mm Aperture: 0.026mm-23.4mm Diameter: 5-3000mm Filtration rating: 2-200μ M Edge processing mode: Flash and closed selvage The shape of the filter: Square, round, oval, rectangular, annular, cat, kidney shape Structure: Single-layer network., multi-layer film filter, combined filter film. Performance: Anti-acid, anti-alkali, high temperature resistance, anti-resist Usage: Mining industry, petroleum, chemical industry, food, medicine and machine manufacture Packing: Waterproof Paper and Then in Wooden Box Advantage of the filter mesh screen (1)Muti-layer welding filters, Muti-layer filter bag side, Single-layer filter (2)Large amount of dirt suck event stainless steel filter screen pieces (3) Strong material guarantee (4)Filtration precision (5)working life is long

Specification of Stainless Steel Wire Mesh Plain Weave
Mesh	Wire Dia. (MM)	Opening(MM)	Material (AISI)
7	1.00	2.63	304 or 316
10	0.60	1.94	304 or 316
12	0.50	1.62	304 or 316
16	0.40	1.19	304 or 316
16	0.35	1.24	304 or 316
18	0.35	1.06	304 or 316
20	0.40	0.87	304 or 316
24	0.26	0.80	304 or 316
30	0.30	0.55	304 or 316
35	0.17	0.56	304 or 316
40	0.23	0.40	304 or 316
50	0.20	0.31	304 or 316
60	0.15	0.27	304 or 316
70	0.12	0.24	304 or 316
80	0.13	0.19	304 or 316
90	0.12	0.16	304 or 316
100	0.10	0.15	304 or 316
120	0.09	0.12	304 or 316
150	0.063	0.11	304 or 316
180	0.053	0.09	304 or 316
200	0.053	0.07	304 or 316
220	0.05	0.065	304 or 316
250	0.04	0.062	304 or 316
270	0.035

---
