TMEP-LED18230T plate making equipment prepress proofing machine

Product Details

Product Description

Product Description
Product DescriptionTMEP-LED12150T One of the plate making equipment -Energy-saving and environment-friendly LED scanning exposure machine
Device parameters:

Mechanical size (length * width * height)	150013501100mm	230019501100mm
Glass area	1200*1500mm	1800*2300mm
Maximum Frame outside size	1000*1200mm	1500*2000mm

Air consumption 13/pcs
Cooling system water cooling
Equipment|Light Source Korea LED
Lamp source power 1000W
Vacuum pump Taiwan oil-free vacuum pump
Blanket cloth pattern blanket 1.2
Glass 12mm white light glass
Drive servo motor Mitsubishi
Control touch film screen PLC Mitsubishi
Locking method: lock
Rated voltage: 220v/ 50Hz
Power consumption: 0-1000W
Radiation intensity 20M distance: 800-1000MW/c m° (data for reference only)
UV MJ/CM 10 meters/minute: 180-200mj/c m° (data for reference only)
Peak wavelength: 395, 365 mixed wavelength
LED chip brand/origin/power: Seoul, South Korea
Light-emitting surface size: 1 000*12MM
Installation method and others: 20-50MM irradiation distance, you can control the lighting in sections according to the actual printing size to save energy
Cooler Control alarm:
1. Synchronous connection abnormal alarm
2. The water machine has no water/over temperature alarm
3. Lack of LED light/LED over temperature/energy power deviation/electrical abnormality alarm
4. Abnormal cooling fan alarm
5. Power supply abnormality/open circuit/short circuit abnormal alarm

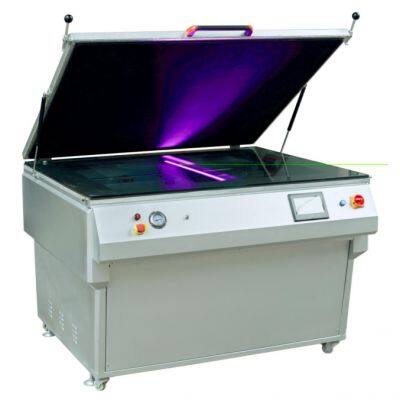

LED Scanning Type Exposure Machine
Scope of application of TMEP-LED12150T:
Exposure of high-precision screen printing screens in high-end industries such as electronics, solar energy, light guide plates, and display screens.
Performance characteristics:
1. The screen plate is vacuum adsorbed, and the high elastic rubber cloth makes the screen plate and the film closely fit, and reproduces the Philippine truly and accurately.
Lin pattern.
2. Imported LED lamp matrix, water cooling system, uniform luminescence, cold light source exposure, glass does not heat, and prevents
Prevent the film from deforming, so as to truly ensure the 1:1 presentation of the pattern. .
3. Driven by the volt-display system, the light-receiving area is irradiated with equal energy for each position distance. Scanning exposure,
Ensure that the exposure of the entire pattern is even. Eliminate the jagged edges of ultra-fine lines.
4. The LED light source consumes less energy, has concentrated energy, and has a long service life. The energy consumption is 5-10 times that of ordinary printing lamps.
5. The LED light source is an instant on-off type light source, no need to preheat to start, it will be exposed when it is turned on, which improves the exposure and plate making
s efficiency.
6. According to the characteristics of different photosensitive adhesives, different exposure scanning speeds and exposure times can be set.
7. Easy to operate, all parameters can be adjusted arbitrarily according to needs in the touch screen.
FAQ（Frequently Asked Questions）
Q1，The overall size of our screen frame is 1.5*2m, what is the price of the exposure machine?
A1:First ask the customer clearly about the actual work requirements. It is a responsible performance not to quote directly.
Different industries have different technical requirements, especially the electronics industry or the color overprinting industry. The common practice is to install two gallium lamps at the bottom of the funnel. The disadvantage is that the uv energy in the middle part is very strong, which leads to substandard after flushing. The common practice not only leaks light at the bottom, but also the distance between the locks at such a long distance is too far, and the gap in the middle is also light leaks,
the middle of the locks will affect the appearance，can accept?
Is it acceptable to raise the funnel and the machine to be higher?
Is the uniformity above 80% up to the standard?
In what industry to use？
Q2： How to judge the level of exposure machine?
A2.1：Turn it on to see the appearance,
Is light leaking from the bottom?
Is light leaking around?
Long-term exposure to ultraviolet rays will harm human health.
A2.2：The same work is for the shape of the 1.5*2m screen frame. There are many special attention to the lamp design. Some use 2 lamp tube sub-cavity design, different shutter control, some use the same shutter control of 2 lamps, some use a high-energy lamp but add High irradiation distance. Some people use LED lights to arrange evenly, and others use LED lights to scan.
A2.3：Open the wall to see the internal structure. Does the lamp have a centrifugal fan for heat dissipation? The ultraviolet lamp will generate a lot of heat when it emits light. If it is not radiated in time, it will affect the life of the lamp.
A2.4：Look at the neatness and standardization of circuit wiring.
Payment Terms︰ TT / LC / West Union
