LV Switchgear Drawer Primary Plug Electric / Circuit Connecting Insert

US$4.81-23.88 10 Pieces (MOQ)

Basic Info.

Model NO.
Wtz6-B-3(4)-125A /250A /400A /630A
Name
Circuit Connecting Insert
Type
Fixed Type and Moving Type Plug
Poles
3poles or 4poles
Current
125A, 250A, 400A, 630A
Operating
Mechanism Series
Model Number
Wtz6-B Series
Use/Application
Mns Gcs Gck LV Switchgear
Manufacturer
Yueqing Winston Electric Co., Ltd
Rated Insulation Voltage
1000VAC
Standard
European Standard, Chinese Standard, Test Report Jb/T 10323-2002
Function
AC Plug, Switchgear Drawer Plug
Interface Type
AC/DC
Application
Gck Mns LV Withdrawable Switchgear
Brand
Winston
Transport Package
Standard Packing
Specification
690v ac
Trademark
Winston
Origin
China, Zhengjiang
HS Code
3901100001
Production Capacity
10000PCS/Month

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 8.00cm
Package Gross Weight
0.500kg

Product Description

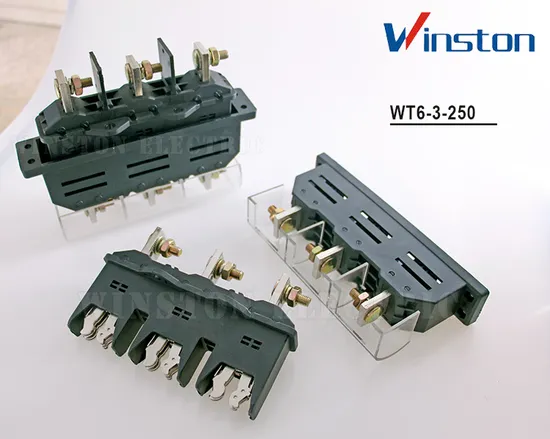

LV Switchgear Drawer Primary plug eletrico / Circuit Connecting Insert
Rated voltage AC690V
Rated insulation voltage 1000V
Allowable working temperature 125ºC
Vertical busbar thickness 6mm
Rated current 125A, 250A, 400A, 630A
Power Frequency Withstand Voltage 3500V
ertical busbar Space between 55mm
Model A B C D E Poles Bolt
WTZ6-B-3(4)-125A 25 36.2 39.2 54, 39 30, 20 3, 4 M8
WTZ6-B-3(4)-250A 25 36.2 39.2 54, 39 30, 20 M8
WTZ6-B-3(4)-400A 30 53 56 54 30 M10,M12
WTZ6-B-3(4)-630A 50 72.5 75.5 74 45 M10, M12
